Machines » Gear Related Machines » WS1 CNC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
| Category |
: |
Gear Related Machines |
|
| Serial No |
: |
Not Available |
|
|
|
| Type of Machine |
: |
High Speed Gear Shaper with CNC Control |
|
|
|
|
|
|
|
|
|
|
| Specification : |

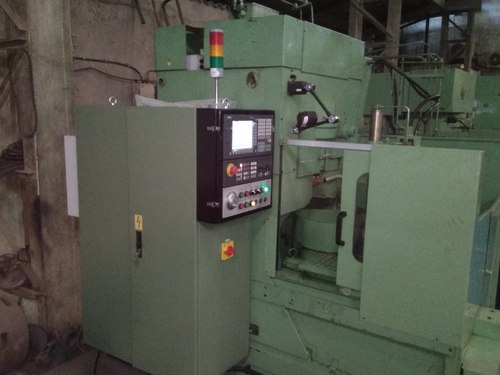

This machine was totally cleaned, hydraulic and coolant systems drained and cleaned, all gib adjustments were checked, all worm lashes were adjusted, all old parts specially bearings were replaced, all mostly oil leaks replaced and then the machine was fully recertified using the ISO alignment standards for CNC Gear Shaper. All the old German controls were eliminated and replaced with new Siemens 808D.
This machine was recontrolled using a BRAND NEW 2017 YOM
Siemens 808D, Digital drives and AC servo motors Power CNC controlling digital Servo drives for the axes. External gears, max. Ø, approx. 265 mm Internal gears, max. workpiece Ø 300 mm Module range 0.3 - 6 Length of stroke 0 - 55 mm No. of strokes, infinitely variable 220 – 1,100 /min Feed range 2.4 – 2,400 mm/min Rotary feed 0.06 – 4.95 mm/rev Weight, approx. 7,300 kg |
|
|
|
|
|
