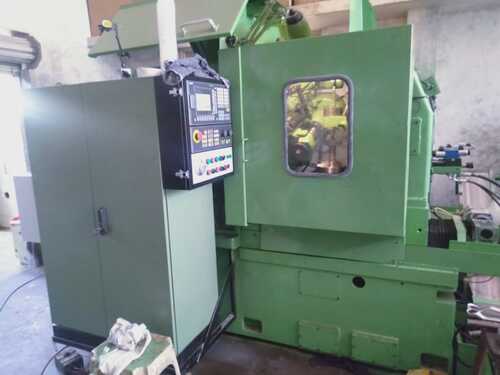

Three axis CNC HOBBER
2023 Rebulit Machine Like New with Siemens 808.
The machine was only used for R and D in a major German factory.

  2. Category List
  3. Gear Related Machines
  4. ZFWZ 250/4 (CNC 3 AXIS)

Gear Related Machines

Download Product PDF Enquiry / Quote / Interested Add this Favourite For Agents

Enlargeable Images :

Download Photo / Zip
Video
Machine Id: 715 Serial No:
Model: ZFWZ 250/4 (CNC 3 AXIS) Asking Price: onrequest

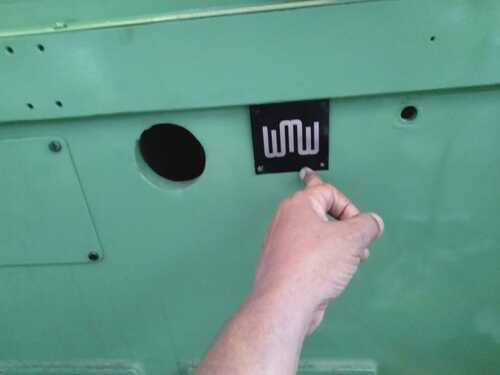

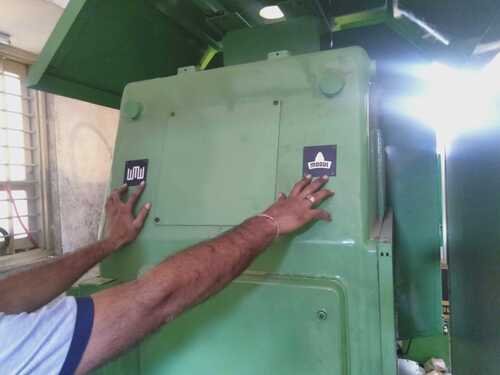

Make: WMW Country: Germany
Year: REMANUFACTURED REBUILT 2023 Weight: 0.0
Dimensions: Location: Mumbai India...Under Power
Power:
Category: Gear Related Machines
Type of Machine: CNC Universal Gear Hobber
Specification

Type of machine :- 3 Axis Gear Hobbing Machine - Vertical
Make wmw MODUL:- Type ZFWZ 250/4

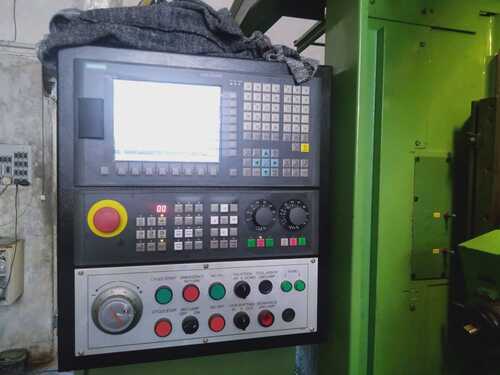

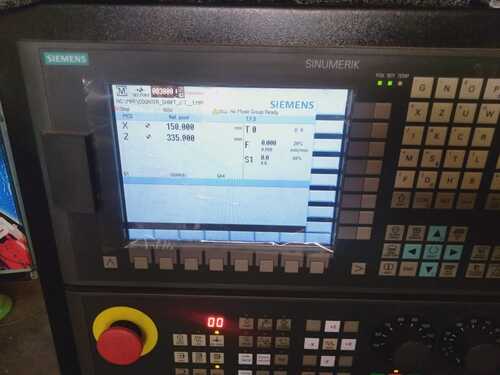

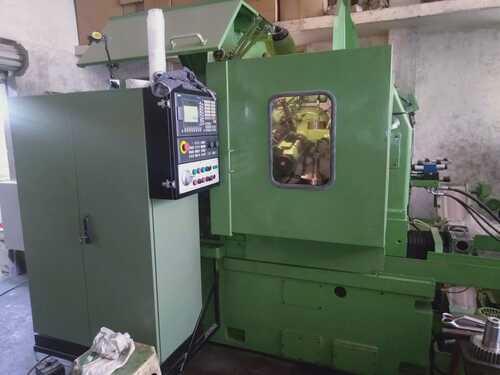

Three Axis CNC Controlled with Siemens 808 (brand new 2023)



max. wheel diameter 250 mm
gear width 275 mm
max. module 6 to 10 (depending on hob dia)
max. angle of teeth 45 Degree
feeds axial 275 mm
shifting 100 mm
min. number of teeth 8
diameter of hob 145 x 170 mm
clamping table diameter 275 / 350 mm



Additional information


complete with change gears, etc
complete , handbooks and machine manuals etc.
fully rebuilt with BRAND NEW 2023 YOM

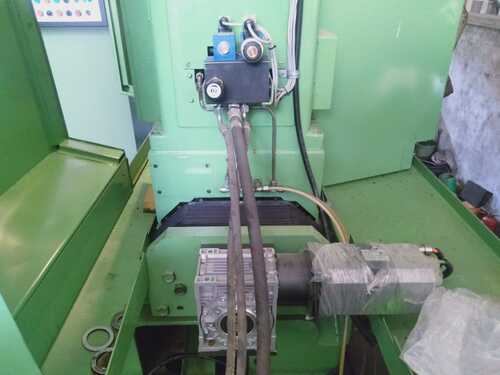

Siemens 808 , Digital drives and AC servo motors

CNC Controlled Axis X and Z + hob shifting,

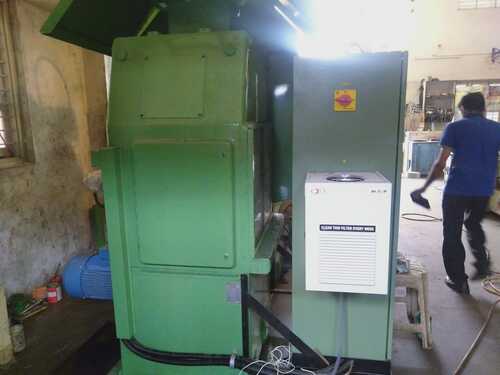

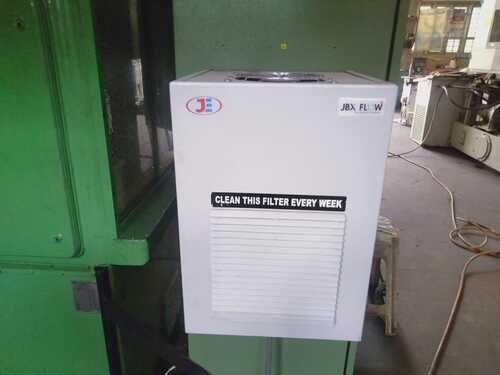

Free standing Electrical Cabinet fitted .

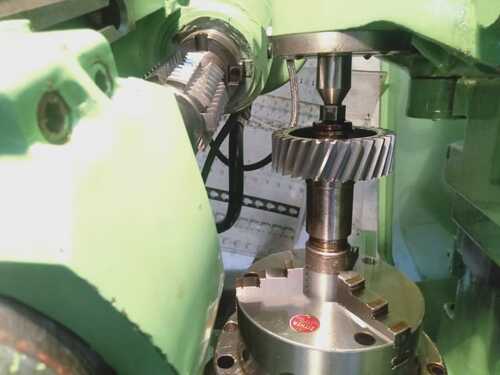

Suitable for Spur , Helical , Crowning & slightly tapered gears both for batch and heavy production of components

Machine Features

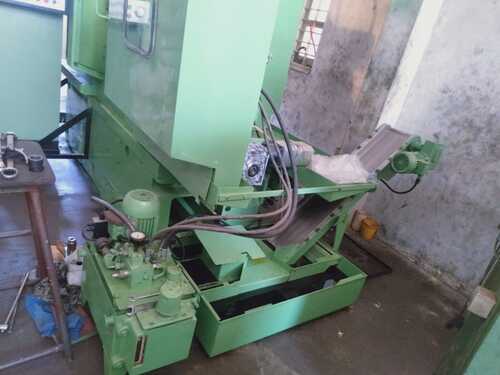

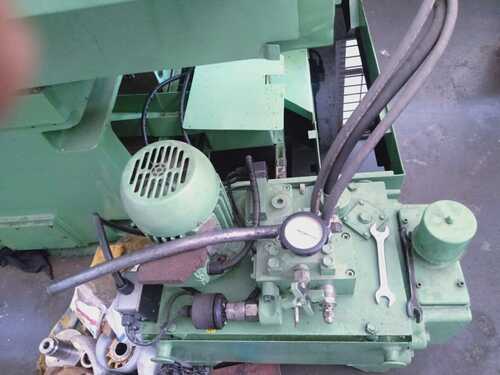

  • Hydraulic Clamping & Tailstock ,
  • Automatic Hob shift

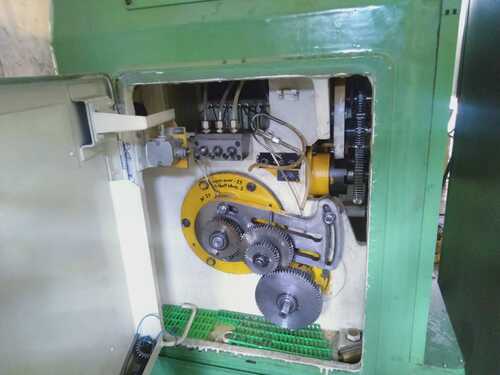

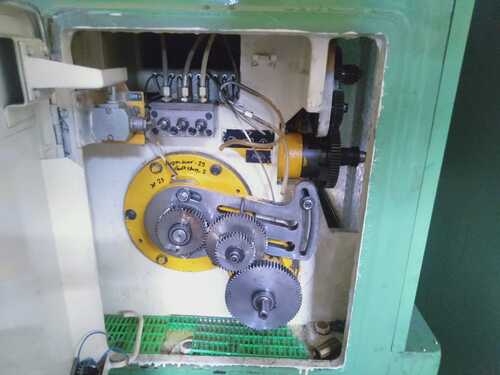

  • Full change gear set
  • One 1.25" hob arbor, outboard bearing, arbor wrench
  • Two copies of the machine operators manual
  • Two copies of all electrical and mechanical prints
  • Can be tooled up to customers as per customers requirement
  • Machine is ready for immediate delivery subject to prior sale.
