Please note :-
we can sell machine as is where is basis (you can either use the same original software )
Or

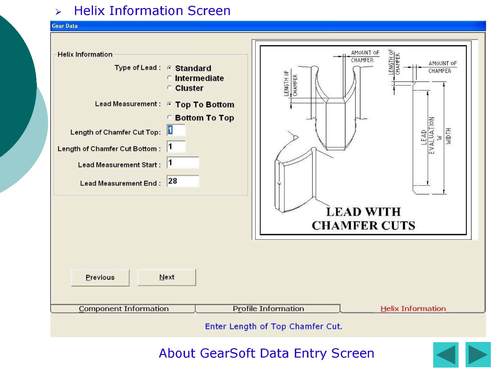

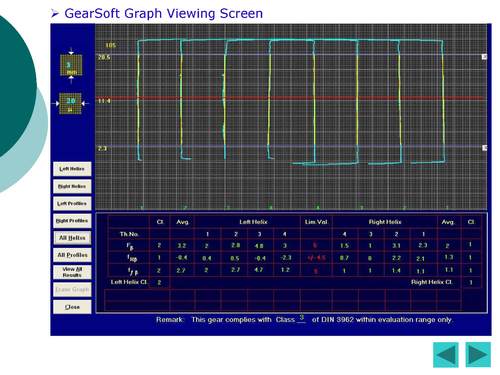

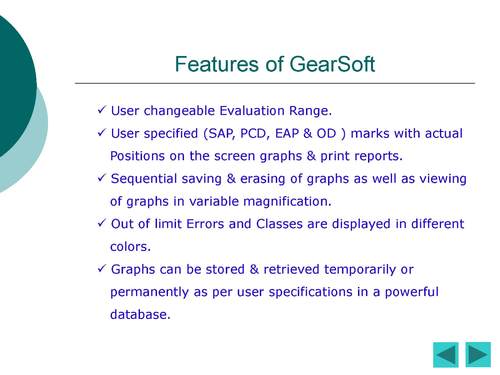

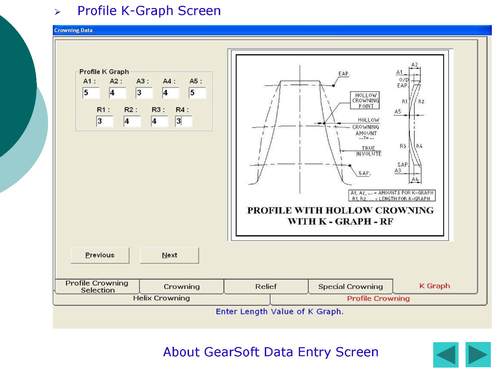

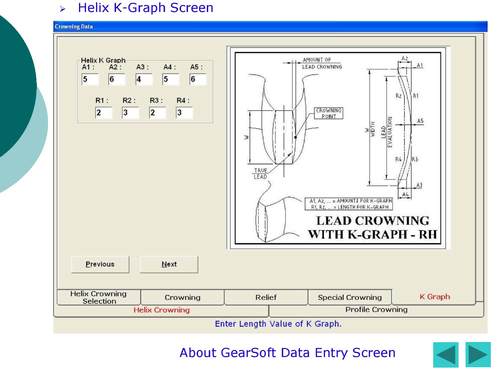

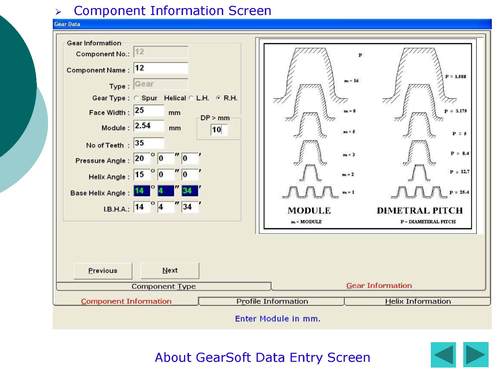

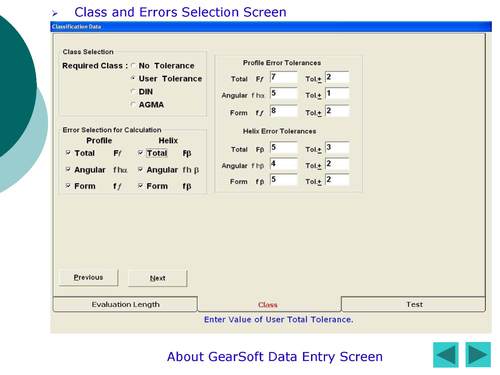

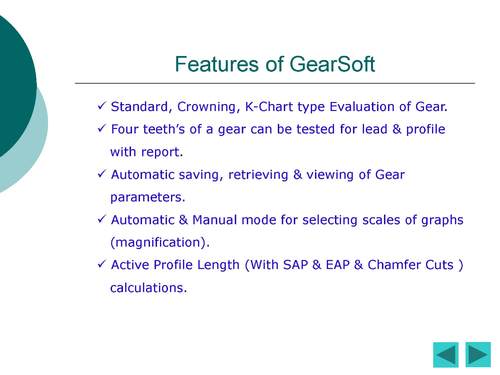

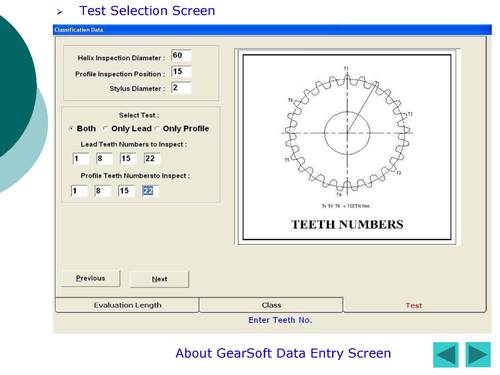

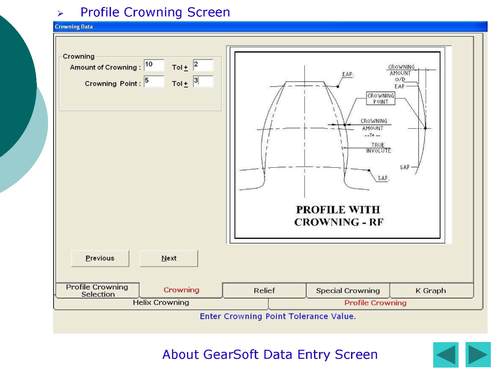

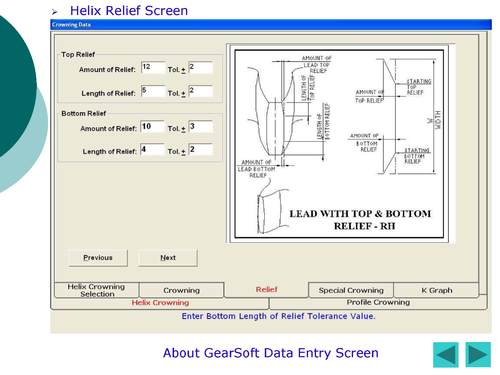

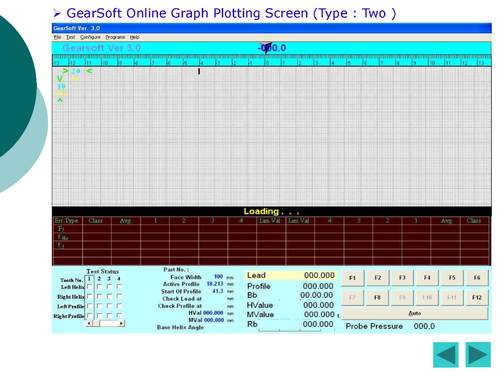

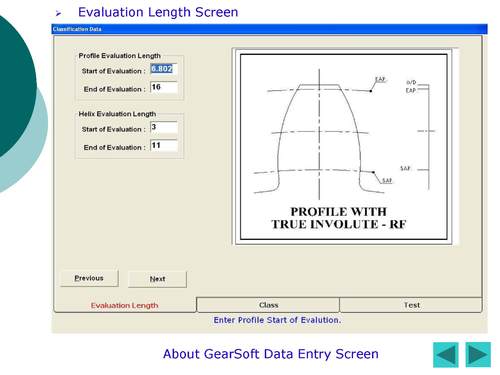

We can change the and rebuilt the machine with New software and the features of the new software is
Briefed as attached

  2. Category List
  3. Gear Related Machines
  4. EMZ400

Gear Related Machines

Download Product PDF Enquiry / Quote / Interested Add this Favourite For Agents
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21

Enlargeable Images :

Download Photo / Zip
Video

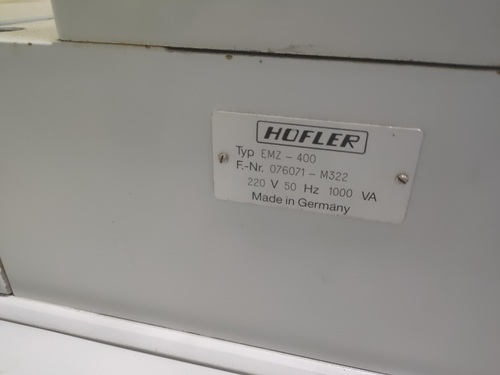

Machine Id: 1289 Serial No:
Model: EMZ400 Asking Price: onrequest
Make: Hofler Country: Germany
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Gear Related Machines

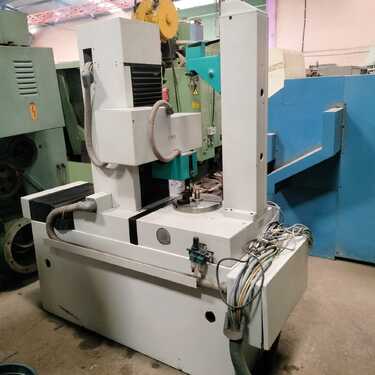

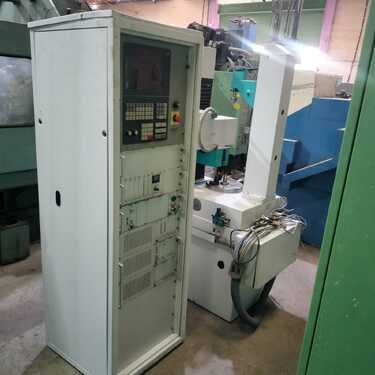

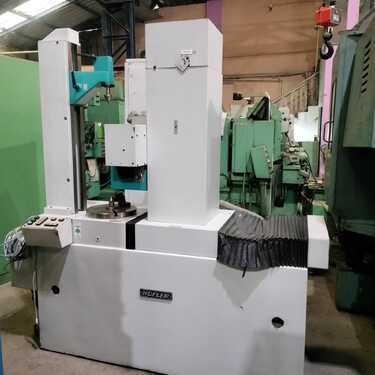

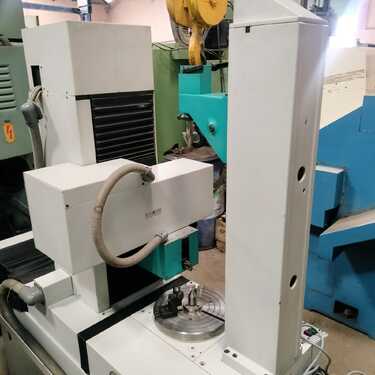

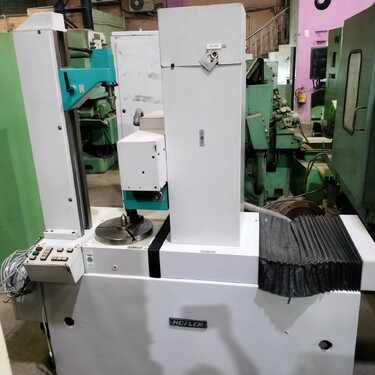

Type of Machine: 4 Axis CNC Gear Tester
Specification

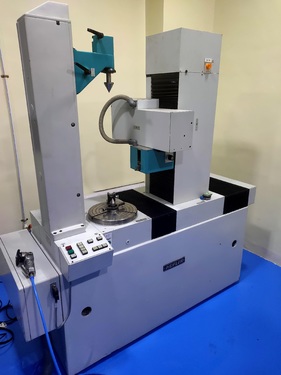

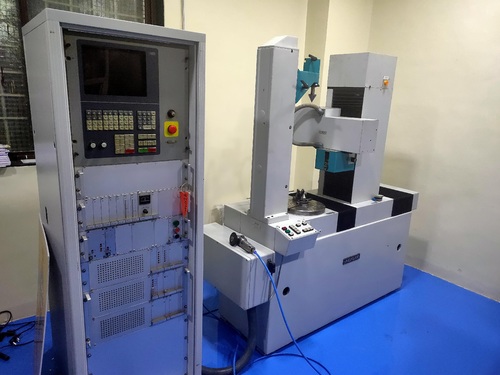

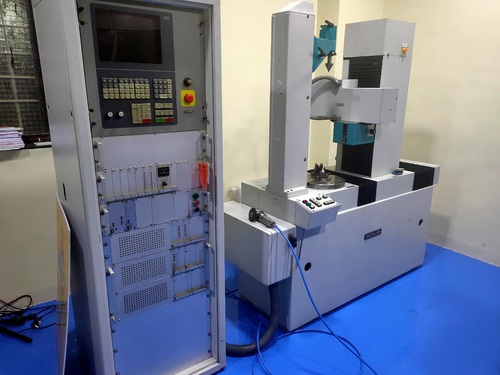

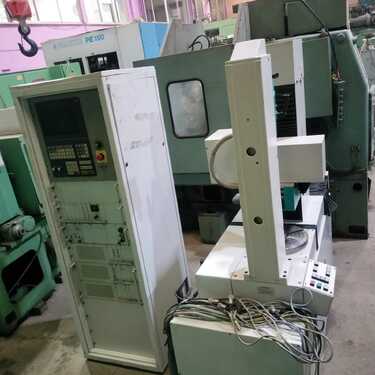

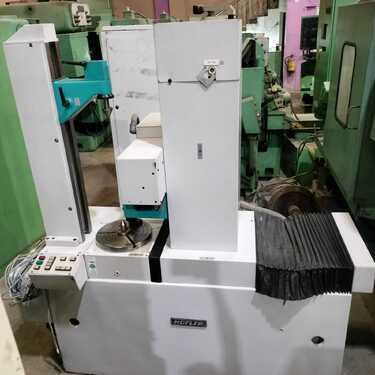

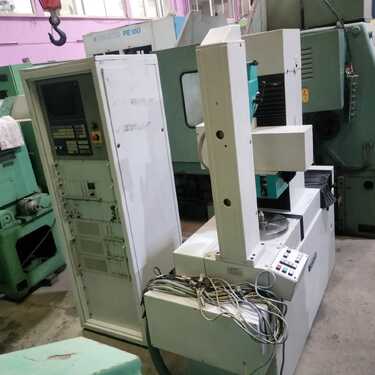

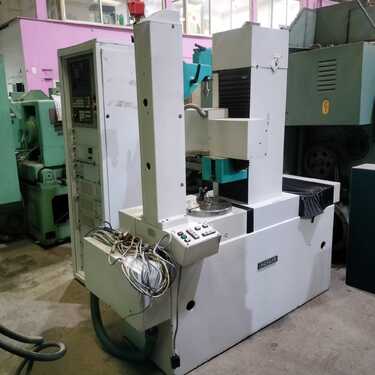

Hofler EMZ-400



Description-:

4 Axis CNC Gear Tester



Technical Specifications:



-  Gear Diameter range min / maxmm 20 / 400
 -  Range of BCDmin / maxmm15 / 380
-  Modulemin / maxmm0.5 / 20.0
-  Helix angle.maxDeg+ / - 60
-  Face width.maxmm500
-  Admit Between Centersmin / maxmm20 / 1050
-  Gear Height above tableminmm80
-  Job weight capacity on tablemaxKg350
-  Linear Axes Least Count.minmicrons 0.1
-  Table Indexing Least countminseconds0.36
-  3-D Probe Least Countminmicrons0.1
-  Power requirement (220V AC)maxkw2.0



Standard Operating & Application Features:

     1. Types of Measurements            - 1.0 External / Internal Involute Spur & Helical Gear

                                                              1a. Gear Tooth Involute Profile & Lead inspection

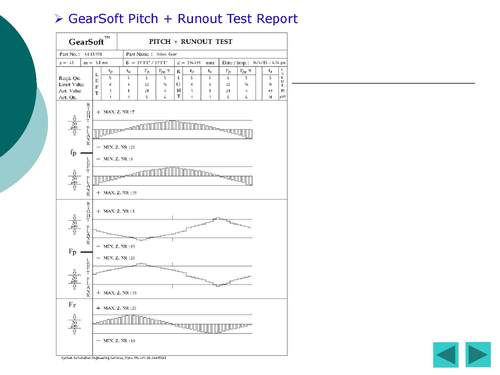

                                                              1b. Individual/Adjacent/Cumulative Pitch Errors,

                                                              1c. PCD Radial Run-out errors.

                                                              2.0 Shaving Cutter Inspection. (Optional)

                                                              3.0 Shaping Cutter Inspection.  (Optional)

     2. Complete Auto Cycle measurement of all parameters.

     3. Machine Axes Calibration Cycle.

     4. Manual Joy-stick control for axis movements.



Please note :-
we can sell machine as is where is basis (you can either use the same original software )
Or

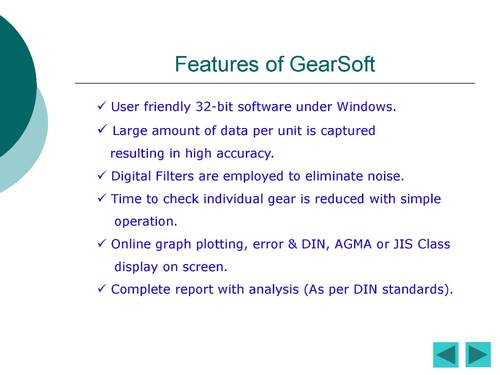

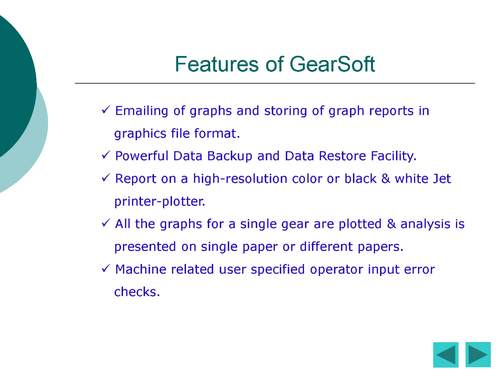

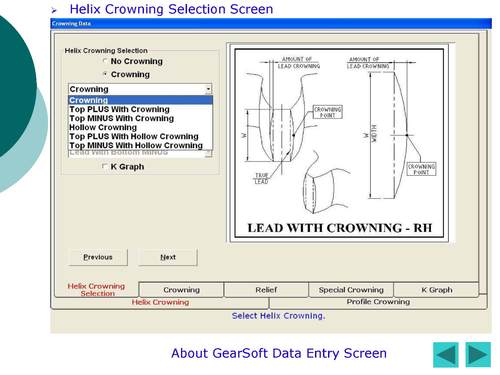

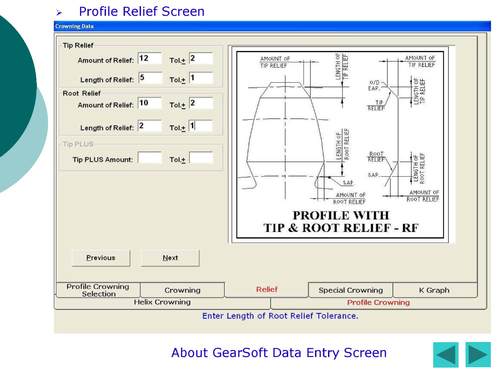

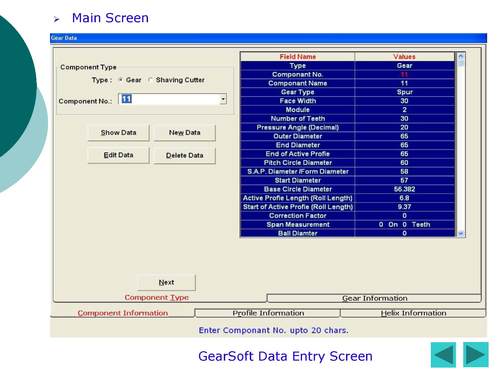

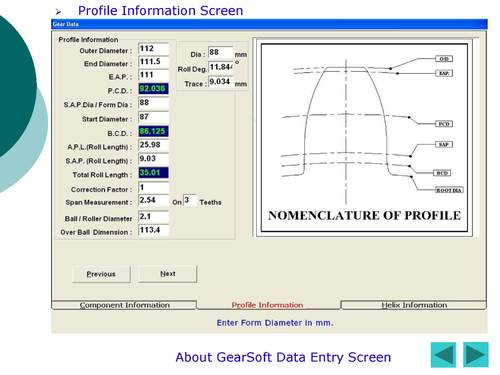

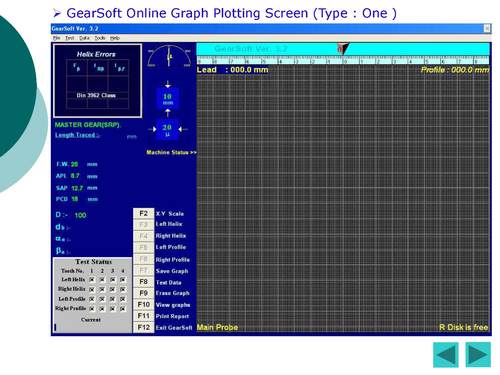

We can change the and rebuilt the machine with New software and the features of the new software is
Briefed as attached
