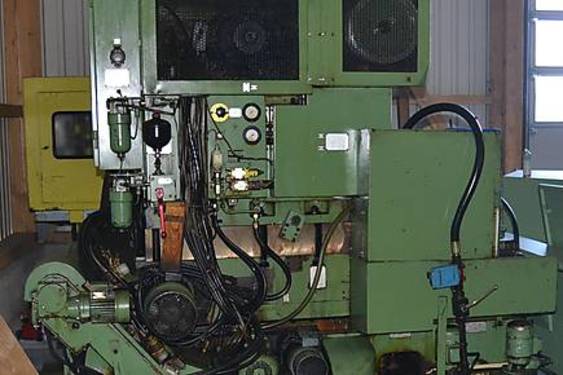

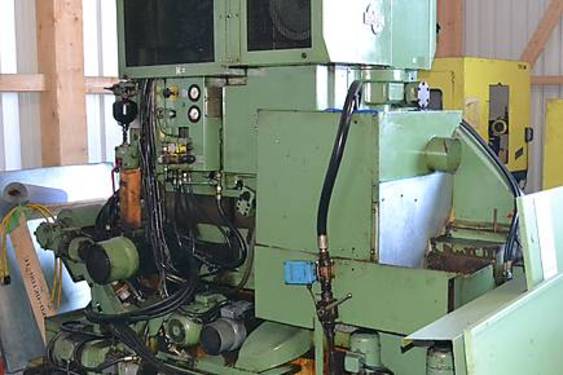

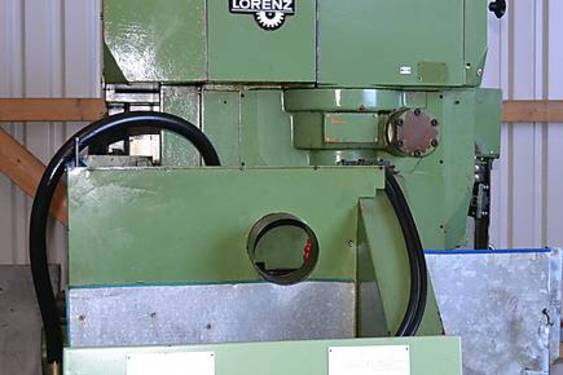

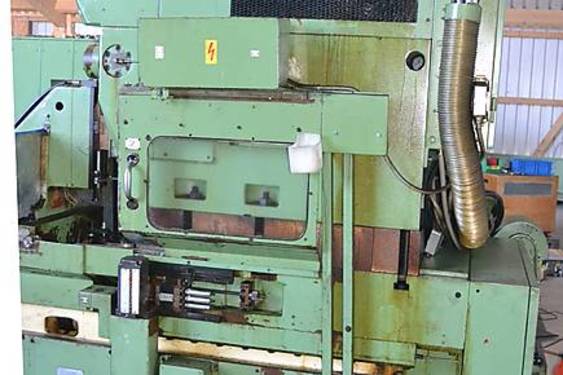

Excellent Machine Like New...high speed production gear shaper with tailstock....150mm x 3module..
External gears, max. Ø 150 mm
Gear width, max. 42 mm
Module, max. 3
Internal gears, max. Ø 60 + cutter Ø mm
Internal gears, max. workpiece Ø, approx. 280 mm
Length of stroke 0 – 50 mm
Adjustment of stroke 0 – 70 mm
No. of double strokes per minute, approx.
355 / 375 / 400 / 1,060 / 1,120 / 1,200
Radial feed, infinitely variable 2.65 – 100 mm/min
Shaping feed 160 – 6,500 mm/min
Table size 250 mm
Table bore 100 mm
Distance between table and shaper head, approx. 265 mm
Total electrical load, approx. 25 kW - 380 V - 50 Hz
Weight 6,500 kg
