Rebuilt Machine in 2001, Machine New Like.
Machine Under Power For Demo.
Very Very Little Used Machine
Heavy Duty Gear Hobber.

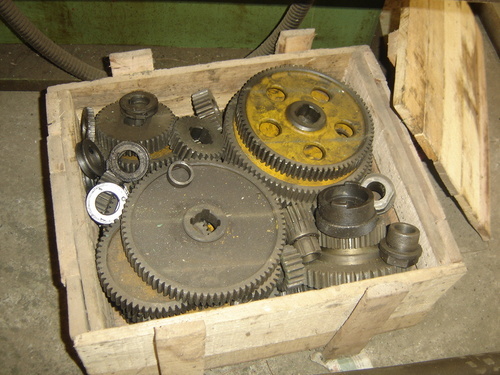

Full Change Gears Available.

  2. Category List
  3. Gear Related Machines
  4. ZFWZ 800 X 10 / II MODUL

Gear Related Machines

Download Product PDF Enquiry / Quote / Interested Add this Favourite For Agents
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14

Enlargeable Images :

Download Photo / Zip
Video

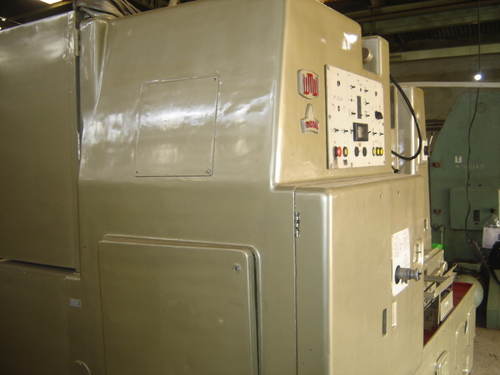

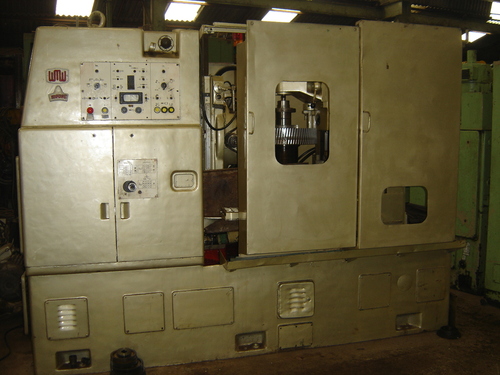

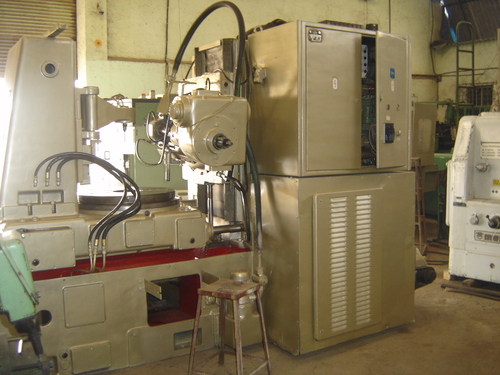

Machine Id: 404 Serial No: Not Available
Model: ZFWZ 800 X 10 / II MODUL Asking Price: onrequest
Make: WMW Country: Germany
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse, India (Under Power For Demo Purpose)
Power:
Category: Gear Related Machines

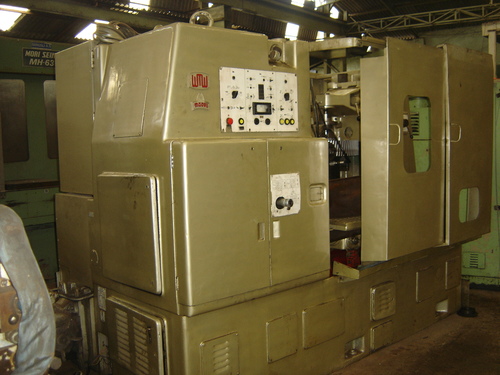

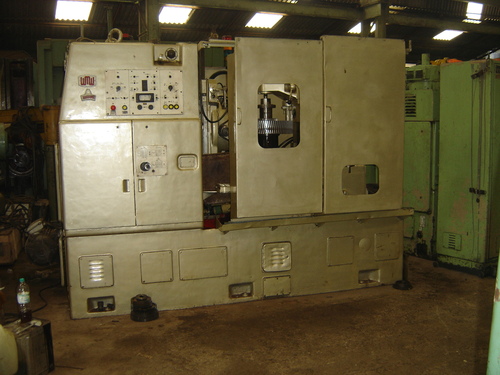

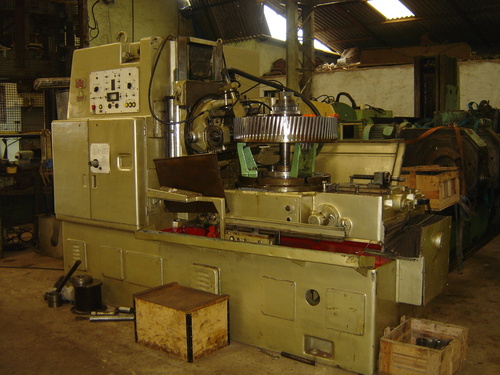

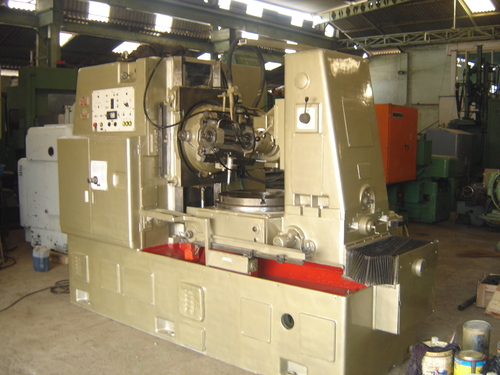

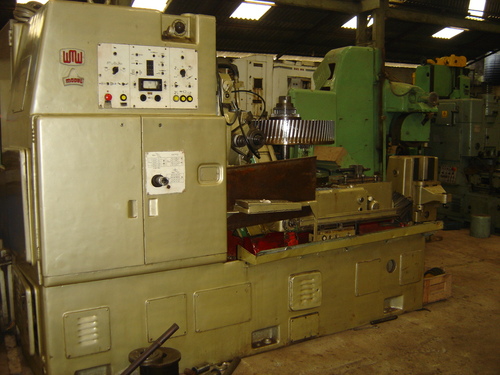

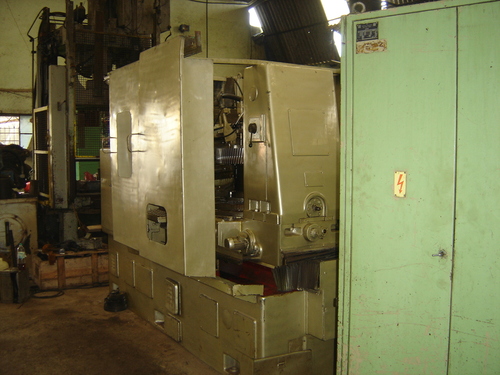

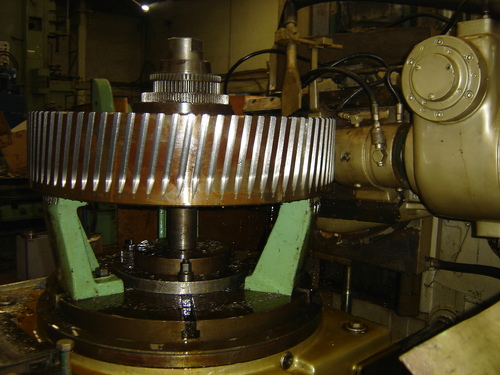

Type of Machine: Universal Gear Hobber Heavy Duty (Rebuilt 2001)
Specification

EQUIPPED WITH:

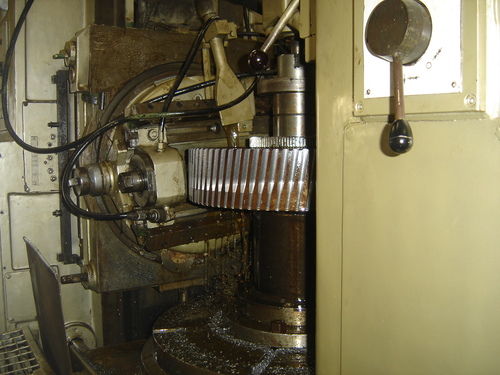

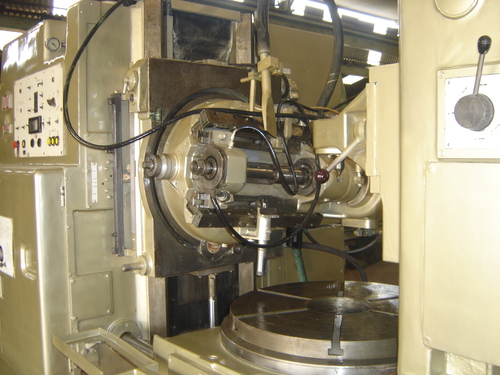

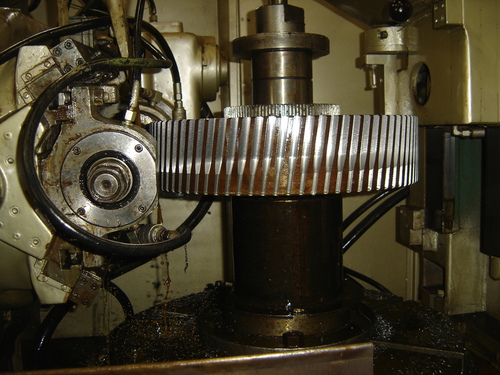

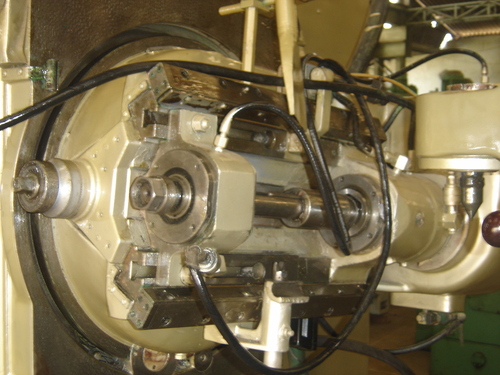

Hob Arbor

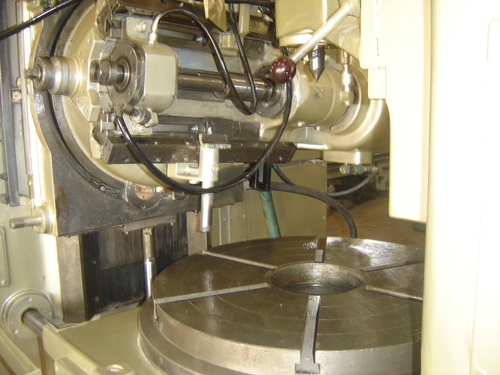

26"T-Slotted Table

Auto Cycle

Differintial

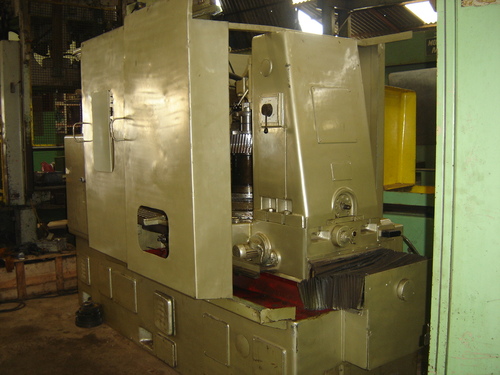

Coolant Splash Guards


Chip Conveyor

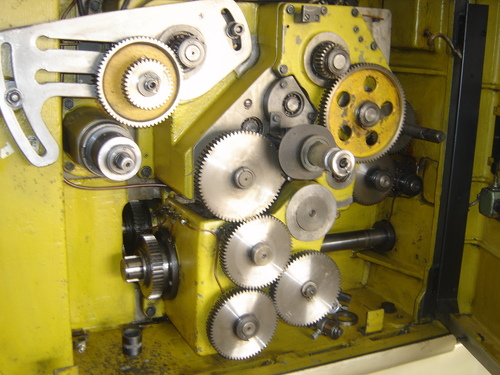

Tangertial Feed Change Gears Full Set.




SPECIFICATIONS:

Maximum Wheel Diameter.....................................800mm
Maximum Gear Width.........................................410mm
Maximum Module.............................................10 Mod
Maximum Hob Diameter.......................................195mm
Table Diameter.............................................700mm
Turning Speed Range........................................40-280 U/Min.
Power Capacity.............................................12.5 Kw
Voltage/Frequency..........................................220/50 V/Hz
Feed-Axial.................................................0.2-8 mm/min.
Feed-Radial................................................0.1-2 mm/min.
Feed-Tangential............................................0.1-2 mm/min.

Description
