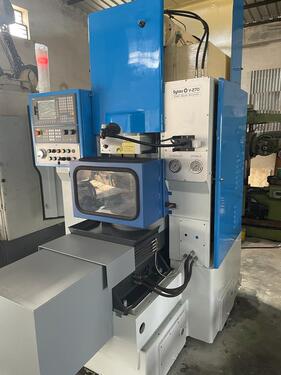

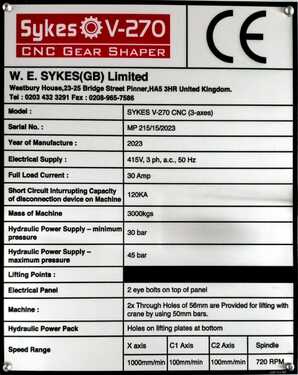

Rebuilt in 2023.Machine CE marked
CNC version of Sykes older model V-10C

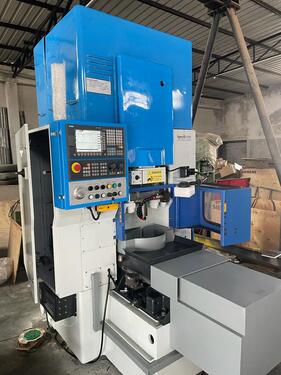

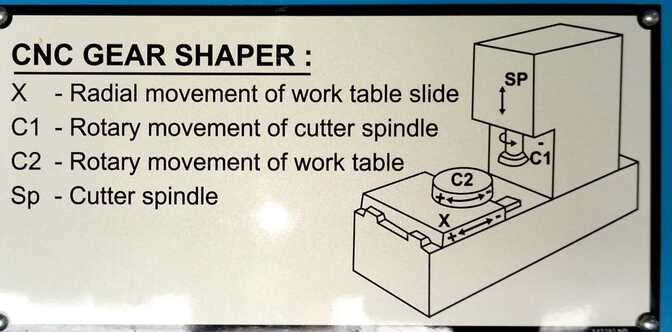

Siemens 808 CNC System controls three axis Table Rotation (C2 axis)
Infeed (X axis) and Rotary Feed of the cutter ( C1 axis)

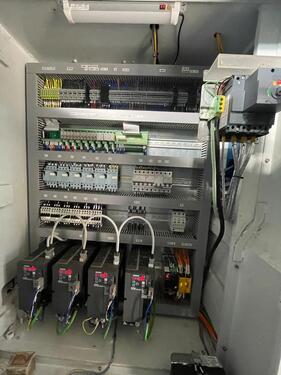

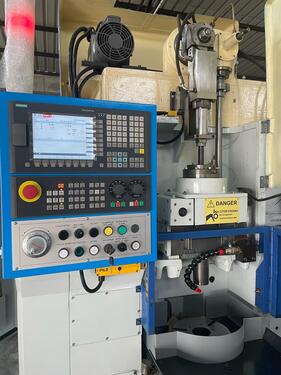

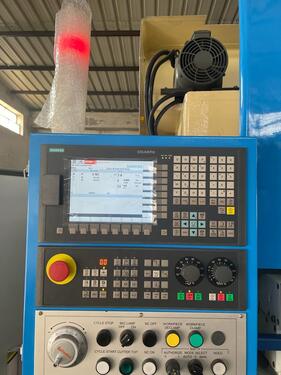

Swiveling pendant control mounted on top of the electrical cabinet No change gears ,

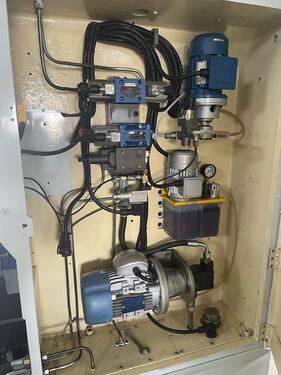

Hydraulic clamping of work piece and hydraulic tailstock

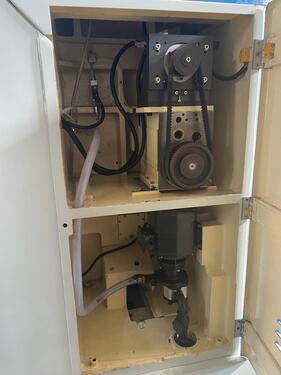

Main spindle motor Siemens AC Servo

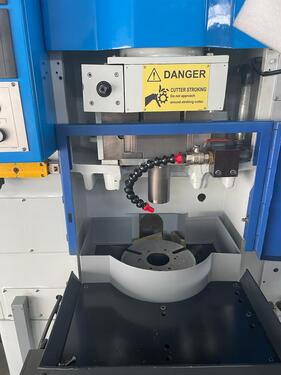

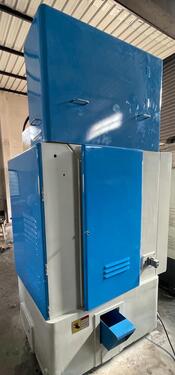

Safety Guards
SPECIFICATION :
Spindle Motor:1PH8101-1DF00-1CA1,
X-axis (Radial Feed) Servo Motor:1FK7063-2AF71-1RA1,11Nm,3000rpm
C1-axis (Circular Feed) Servo Motor:1FK7063-2AF71-1RA1,11Nm,3000rpm
C2-axis (Circular Feed) Servo Motor:1FK7063-2AF71-1RA1,11Nm,3000rpm
Hydraulic pump motor: 415v, 1.1kw/1.5Hp, 2.51Amp., 1415rpm)
Coolant pump: 3-phase, 380/440v, 0.5Hp, 0.9Amp., 1425rpm
General Lubrication Motor: 3-phase, 380v, 0.25Hp, 0.55Amp., 1380rpm
Cyclic Lubrication Unit Motor: 220v, 40kw, 0.6Amp., 1500rpm
Capacity:
Pitch ( Minimum - Maximum ) 0.5mm to 6.3 Module
Face Width & Stroke length :- 100MM
Maximum diameter 250MM
Maximum Helix angle +/- 45 degree
Cutter Spindle diameter 68.23mm
Work table dimension
Height of worktable above floor 930mm
Overall height of the machine 2200mm
Overall width 1350 mm
Overall depth ( front to back) 1750 mm
