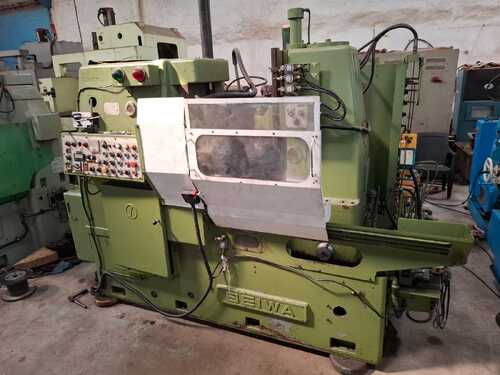

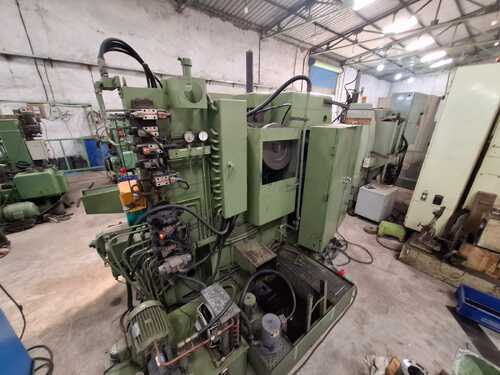

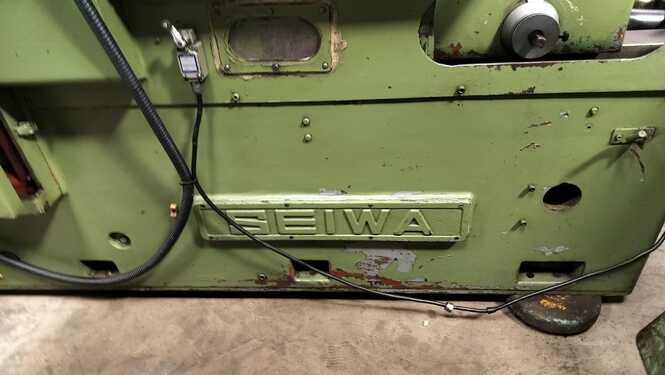

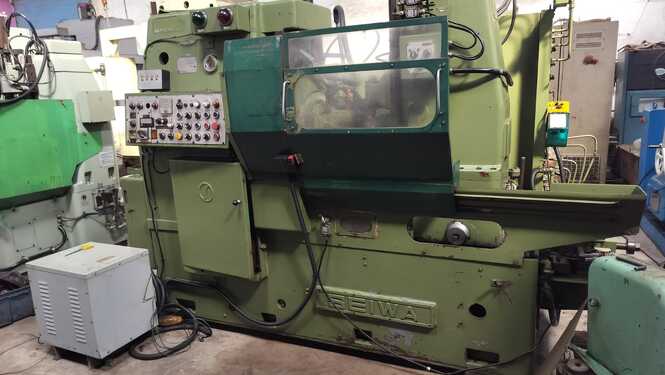

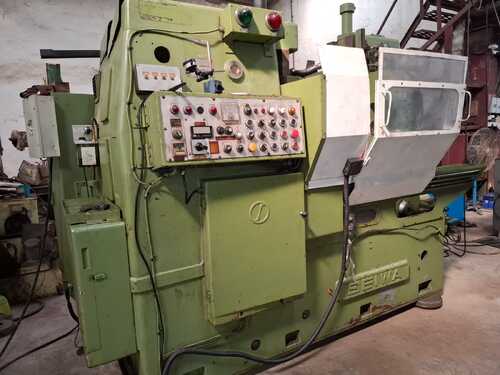

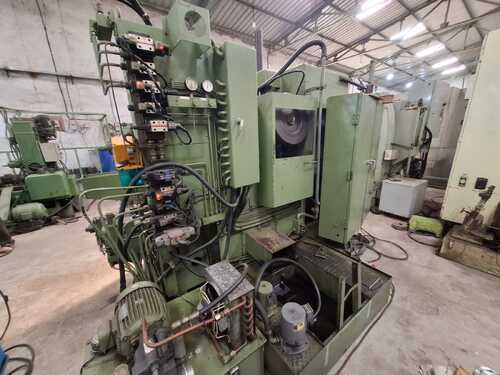

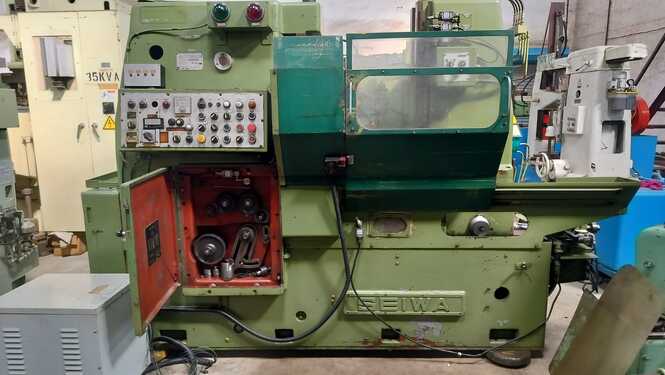

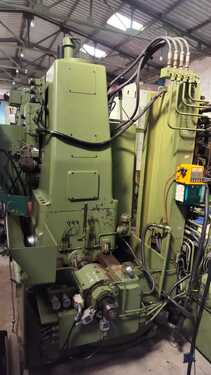

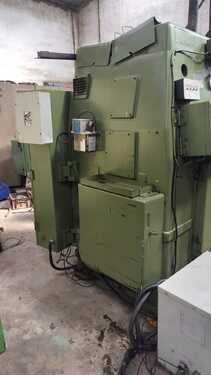

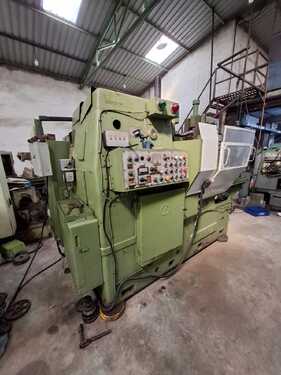

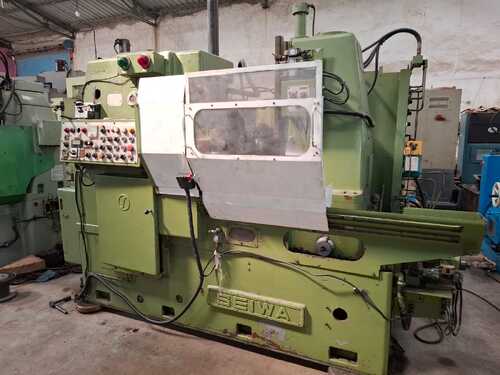

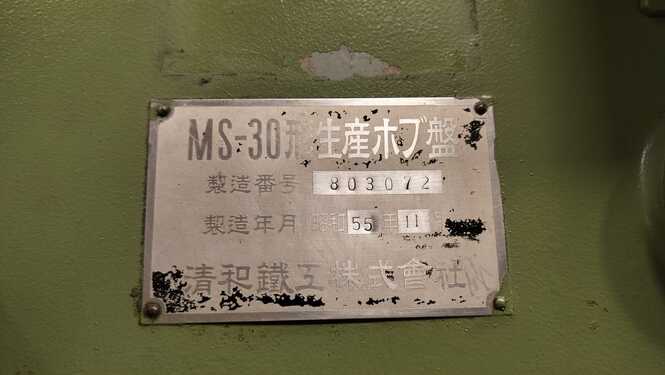

• Model: SEIWA MS 30
• Type: Manual Gear Hobber
• Country of Origin: Japan
• Cutting Capacity:

• Maximum Gear Diameter: 300 mm
• Maximum Gear Module: 6 mm
• Maximum Workpiece Length: 400 mm

• Spindle Speed:

• Hob Spindle Speed Range: 50 to 1200 rpm
• Work Spindle Speed Range: 10 to 400 rpm

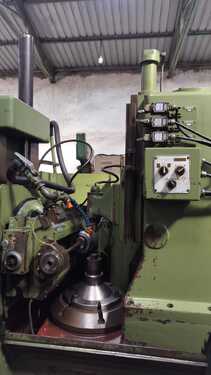

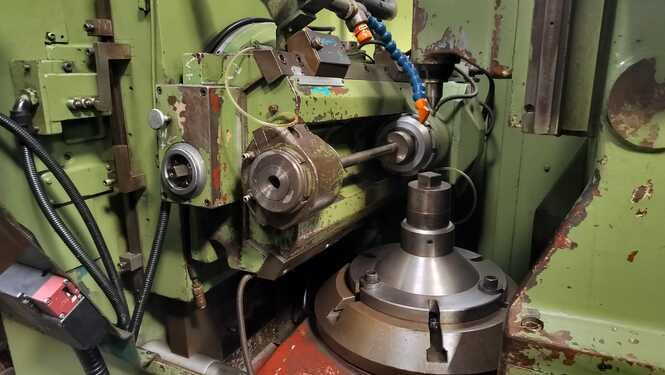

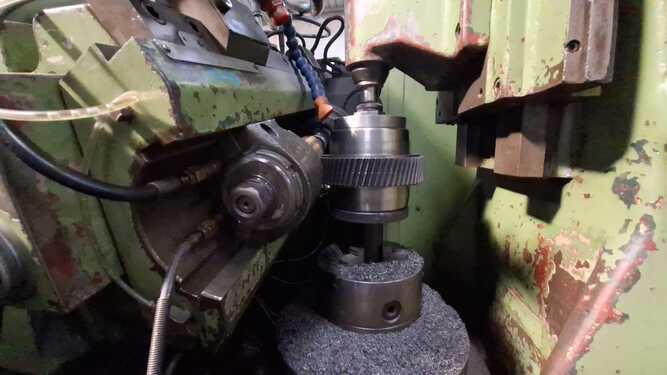

• Hob Spindle:

• Power: 5.5 kW
• Maximum Hob Diameter: 150 mm

• Table Movement:

• X-axis Travel: 500 mm
• Y-axis Travel: 250 mm

• Feed Rates:

• In-feed Rate: 0.02 to 3 mm/rev
• Return Rate: 0.03 to 4 mm/rev

• Accuracy:

• Cutting Accuracy: ±0.02 mm
• Surface Finish: Ra 2.0 μm

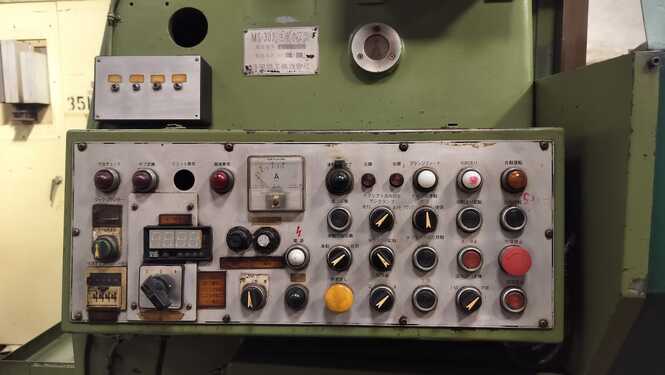

• Control System: Manual operation for straightforward and reliable gear cutting
• Dimensions:

• Machine Size: 1800 x 1600 x 2300 mm

• Weight:

• Approximate Weight: 3000 kg

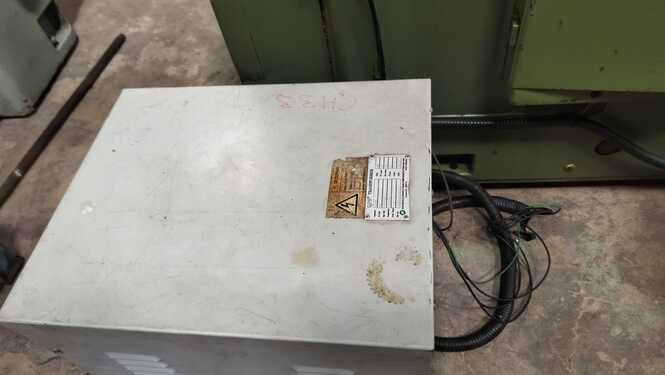

• Power Supply: 380V, 50/60Hz, 12 kVA



Features:

• High Precision: Designed to deliver superior cutting accuracy and excellent surface finish with manual control.
• Versatile Capabilities: Accommodates a wide range of gear sizes and types, perfect for diverse manufacturing needs.
• User-Friendly Manual Operation: Offers ease of use with intuitive manual controls.
• Robust Construction: Built in Japan for long-lasting durability and minimal maintenance.
• Increased Productivity: Efficient cutting capabilities to enhance production rates and overall efficiency.
•

Applications:

Ideal for high-precision gear production in:

• Automotive Manufacturing
• Aerospace Industry
• Industrial Machinery
• Power Transmission Systems
