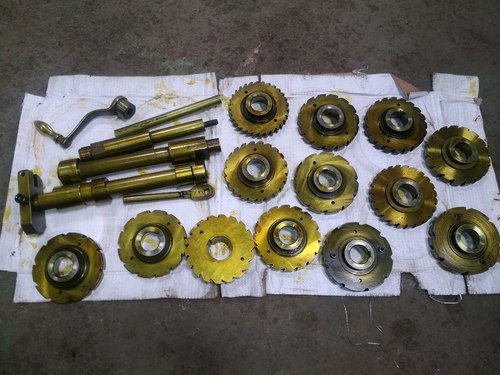

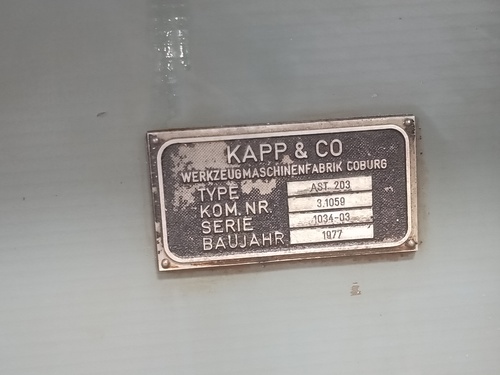

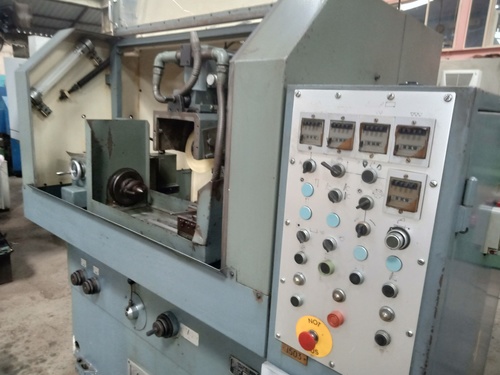

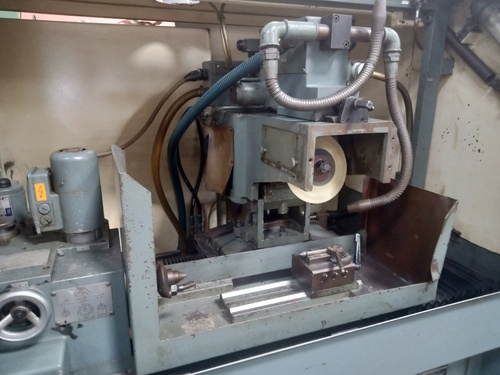

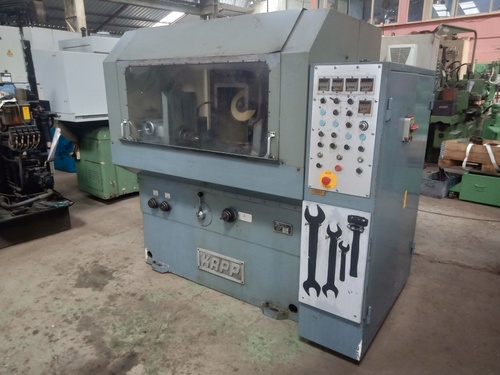

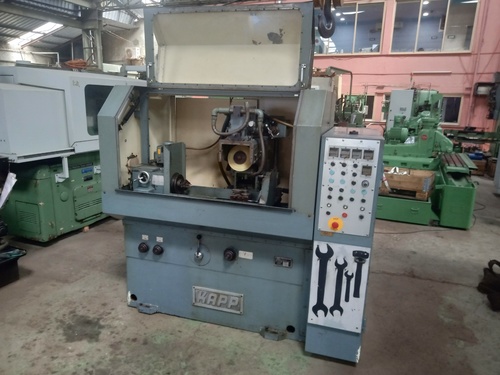

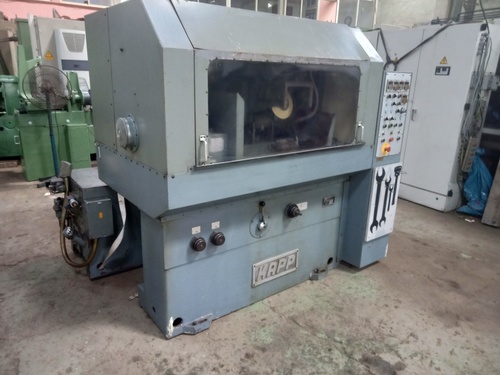

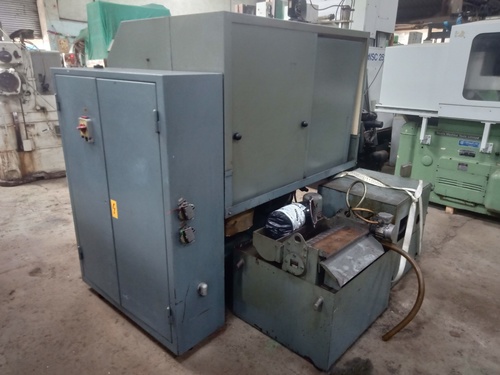

KAPP AST-203 Gear Hob Sharpner Machine complete with 13 Index Plates
8, 10, 11, 12, 15, 16, 17, 18,
18, 20, 22, 24, 30
PRODUCT SPECIFICATIONS
CAPACITIES:
MAX. DISTANCE: FRONT EDGE OF INDEXING DEVICE SPINDLE
TO TAILSTOCK CENTER 17.32"
MAX. DISTANCE BETWEEN CENTERS 13.39"
STANDARD CENTER HEIGHT 4.13"
MAX. WORKPIECE DIAMETER ........ 8"
MAX. TABLE STROKE 12.40"
TABLE SPEED, COMPLETE TRAVERSE GRIND 9.5-52 FPM
TABLE SPEED, DEEP GRINDING 0-3 FPM
GRINDING SPINDLE SWIVEL, HORIZONTAL 15 DEGREES
AXIAL GRINDING SPINDLE ADJUSTMENT:
- IN 15 DEGREE POSITION 0.7"-0.59"
- IN HORIZONTAL POSITION +2.36"/-0.787"
DISTANCE, CENTERLINE TO GRINDING SPINDLE CENTER:
- IN 15 DEGREE POSITION 3.15"-9.84"
- IN HORIZONTAL POSITION 0-5.7"
VERTICAL GRINDING HEAD ADJUSTMENT 6.7"
GRINDING SPINDLE SPEED 3000 RPM
GRINDING SPINDLE SPEED 4000 RPM
GRINDING SPINDLE SPEED OPTION 3200 RPM
MAX. GRINDING WHEEL DIAMETER 8"
FLUTE LEAD, INFINITELY ADJUSTABLE 0-15 DEGREE
FLUTE LEAD 24"-INFINITE
MAIN SPINDLE TAPER ISA 40
AUTO SINGLE FEED WITH 4" WORKPIECE 0-.0016"/TOOTH
AUTO FEED DEEP-GRINDING, MAX. .002"/REV.
PRE-SELECTED FEEDS 0-9999
GRINDING SPINDLE MOTOR 4.05 HP
HYDRAULICS MOTOR 2 HP
INDEXING MOTOR .12 HP
COOLANT PUMP .92 HP
CHEMAPERM SYSTEM .12 HP
OIL MIST EXHAUSTER 1 HP
ACTUAL DIMENSIONS, STANDARD 70" X 100" X 95"
APPROXIMATE WEIGHT 4,500 LBS.
