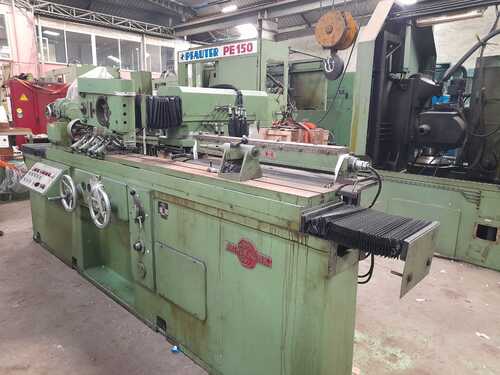

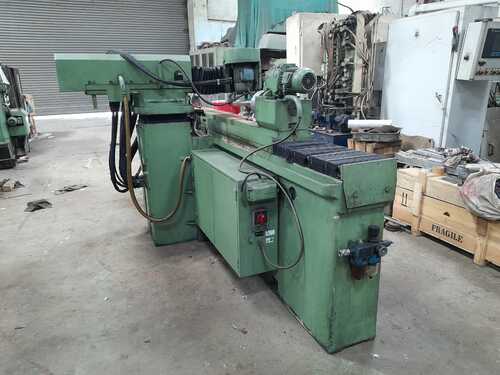

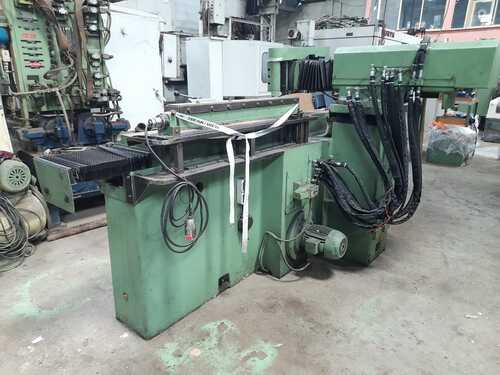

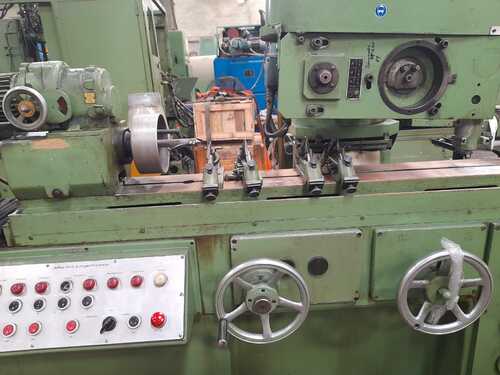

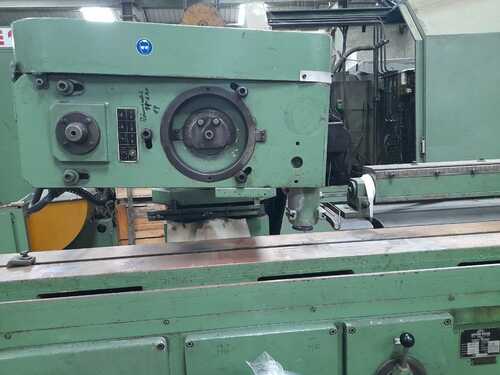

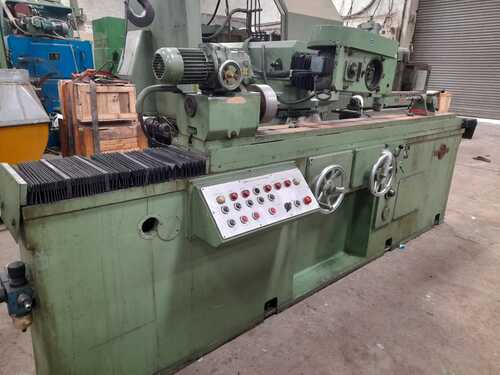

Broach Sharpening Machine

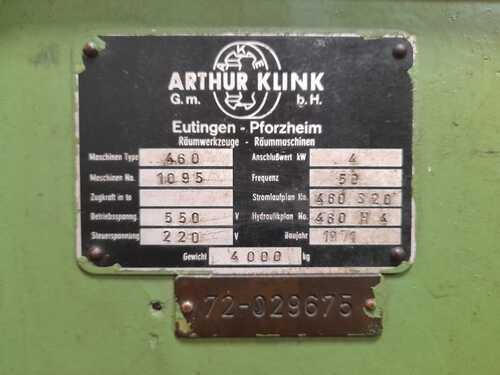

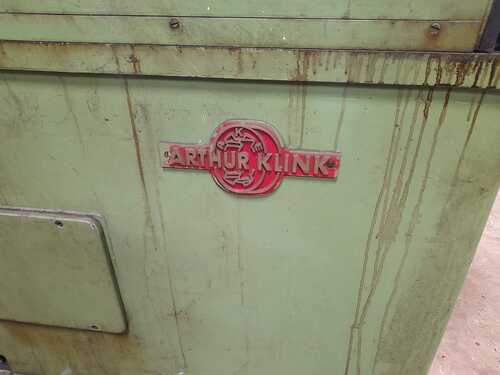

Manufacturer: KLINK
Model / Type: 460
Manufacturing number 1090,
Grinding length max. 2000 mm,
Grinding width max. 300 mm,
Centre width 2000 mm,
Grinding table clamping surface 2700 x 200 mm,
Table movement by hand 2000 mm,
Grinding support: movement horizontal hydraulic 300 mm,
Vertical by hand 260 mm,
Swivelling 60°,
Grinding head swivelling range 90°,
Disengaging movement 25 mm,
Disengaging angle 11°,
Clamping breaker slide: Working stroke by hand 10 mm,
Movement horizontal by hand 115 mm,
Grinding spindle: taper 1:6,

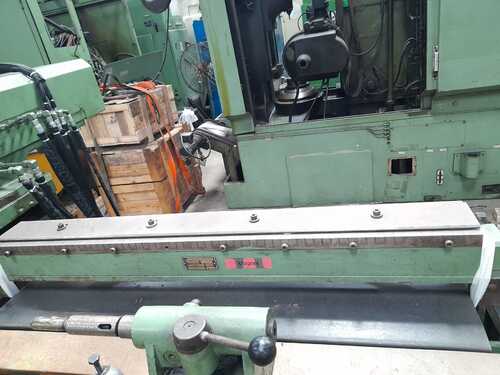

Magnetic clamping plate 1000 x 100 mm,
Swivel range 90°,
Height adjustment 12 mm,
Grinding spindle 60 mm diameter x 250 mm
Machine Weight approx. 4,200 kg
Dimensions (l x w x h) approx. 5,000 x 1,700 x 2,100 mm
