Heavy Duty Machine EQUIPPED WITH:

Differential
Two-Cut Cycle
Auto Hob Shift
Crowning
Tailstock
Chip Conveyor
Coolant
Change Gears
Operators Manual

  2. Category List
  3. Gear Related Machines
  4. 301

Gear Related Machines

Download Product PDF Enquiry / Quote / Interested Add this Favourite For Agents

Enlargeable Images :

Download Photo / Zip
Video

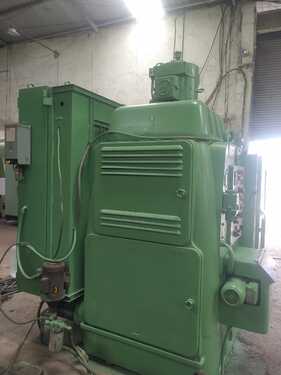

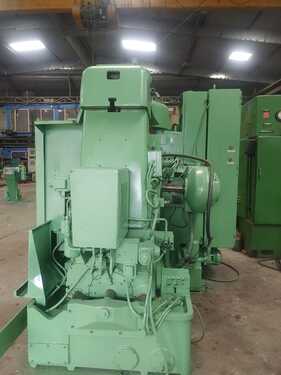

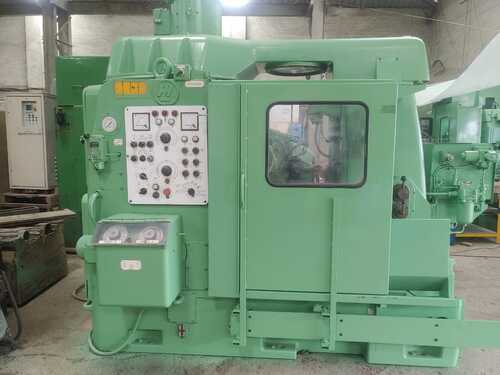

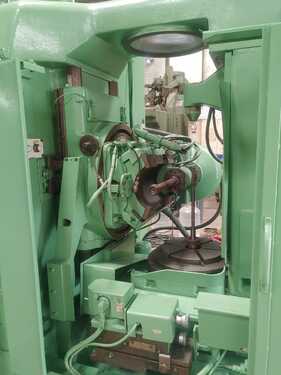

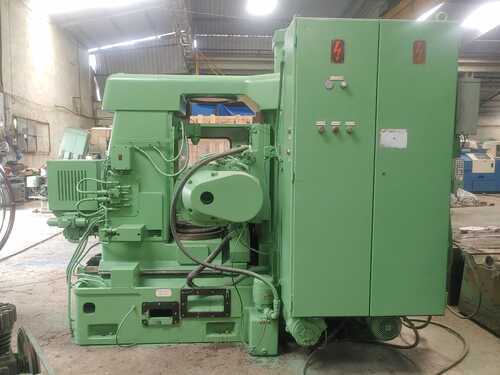

Machine Id: 1280 Serial No:
Model: 301 Asking Price: onrequest
Make: Liebherr Country: Germany
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Gear Related Machines
Type of Machine: Heavy Production Gear Hobber
Specification



CATALOG SPECIFICATIONS:

Maximum Pitch Diameter with a 4" Hob 13.32"
Maximum Pitch For Hobbing Steel: 4,25 DP
Maximum Workpiece Diameter: 11.811"
Travel Of Hob Head Carriage: 8.858"
Work Table Diameter: 12.401"
Hob Spindle Centerline Above Machine Table: 6.496" Minimum
Maximum Length Of Workpiece: 26.772"
Infinitely Variable Radial Feed: .039" - .472"/Minute
Rapid Traverse Of Hob Slide: 37.795"/Minute
Weight Of Machine: 14,000# Approx
Maximum Hob Length ...5.900" Maximum Hob Diameter: 5.512"
Maximum Hob Shift Or Tangential Travel: 5.900"
Hob Head RPM, Infinitely Variable: 80 - 640

Description
