Gear Related Machines

Max. Gear Diameter : 400 mm

Module : 6

Hobbing Length : 300 mm

Max. Length of Workpiece appr. : 600 MM

Table Diameter : 400 mm

Table Bore, appr. : 90 mm

Hob Carriage, swivelling : 240 degr.hOB sIZE

Hob Size : 160 mm dia x 160 mm

Hob Shifting, max. : 100 / 120 mm

Hob Spindle Speeds : 80 - 480 rpm

Feed Range, axial, infinitely variable : 0.4 - 4.95 mm / rev

Feed Range, radial, infinitely variable : 0.1 - 1.22 mm / rev

Feed Range, tangential, infinitely variable : 017 -2.1 mm / rev

Spindle Drive, appr. : 7.5 kW

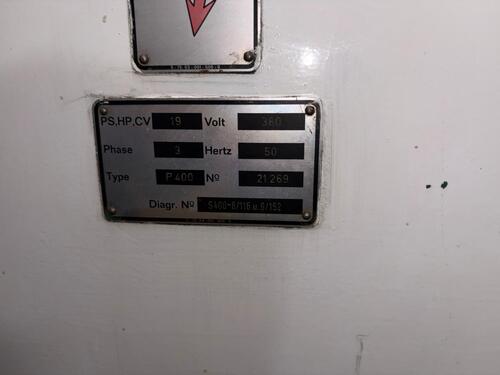

Total electrical load, appr. : 10 kW - 380 V - 50 Hz
