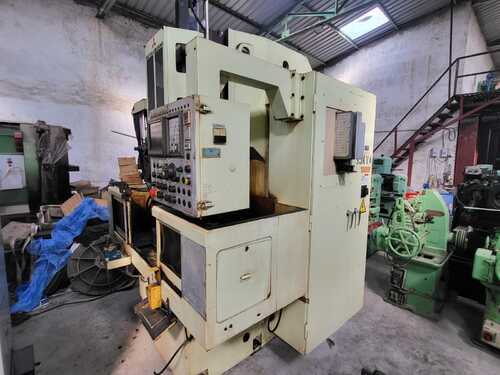

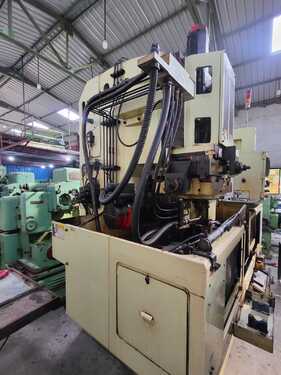

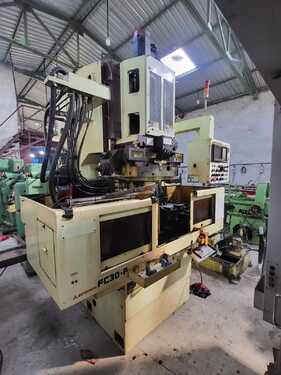

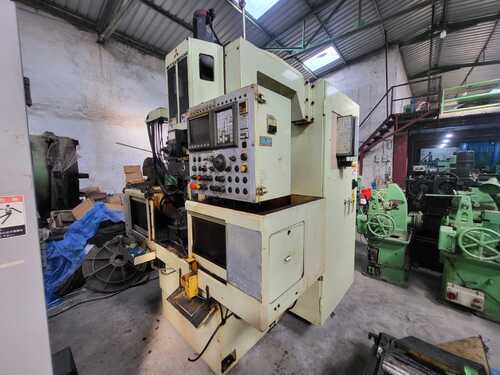

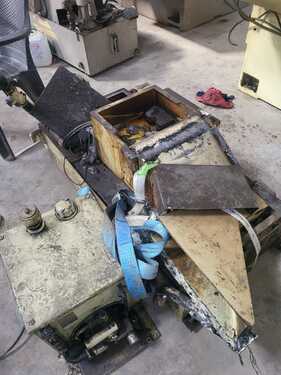

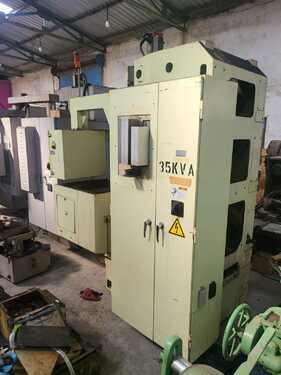

Gear Related Machines

CAPACITIES:

MAX GEAR DIAMETER 12.20"
MAX MODULE 3.175 DP
MAX TOOTH WIDTH 5.90"
MAX DISTANCE BETWEEN CENTERS 25.59"
MAIN MOTOR 8 HP

CUTTING SPECIFICATIONS:

MAX CUTTING DIAMETER 9.44"
MAX CUTTER WIDTH 2"
CUTTER INSIDE DIAMETER 2.5"
CUTTER ROTARY SPEED 40-400 RPM
SWIVEL ANGLE +/-23 DEG
CUTTING FEED SPEED .0039-.0984 IPM

TABLE:

TABLE FEED SPEED 1.18-11.81 IPM
TABLE STROKE 5.90"
DIAGONAL ANGLE +/-90 DEG

EQUIPPED WITH:

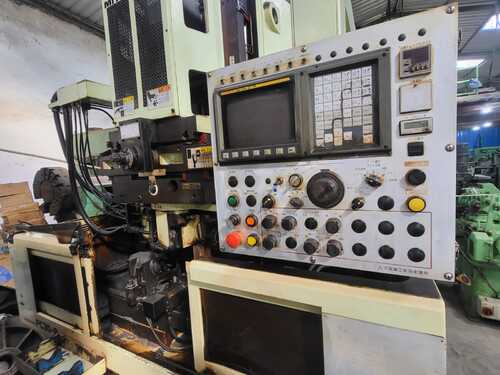

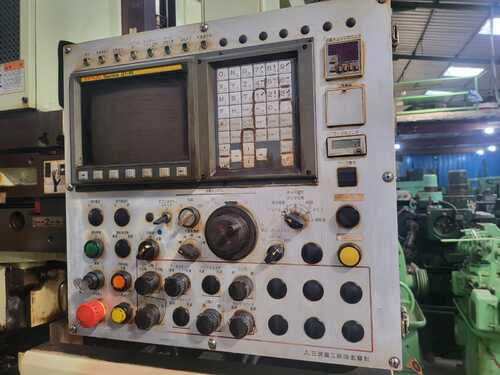

MITSUBISHI-FANUC Fanuc Series 21M
COOLANT FILTRATION SYSTEM
PLUNGE, UNDERPASS, DIAGONAL, & CONVENTIONAL CUTTING
CUTTING DEPTH BY FREE SELECTION IN PROGRAM
CUTTING METHOD BY SHIFT USING BALL SCREW
