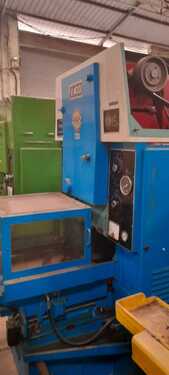

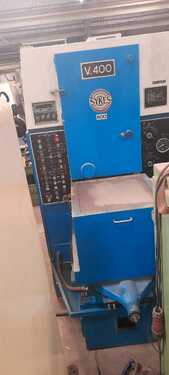

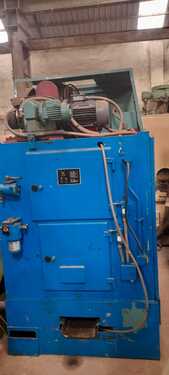

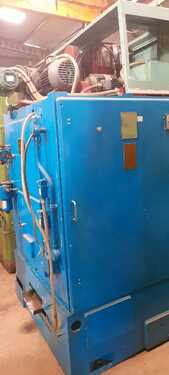

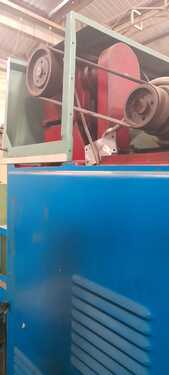

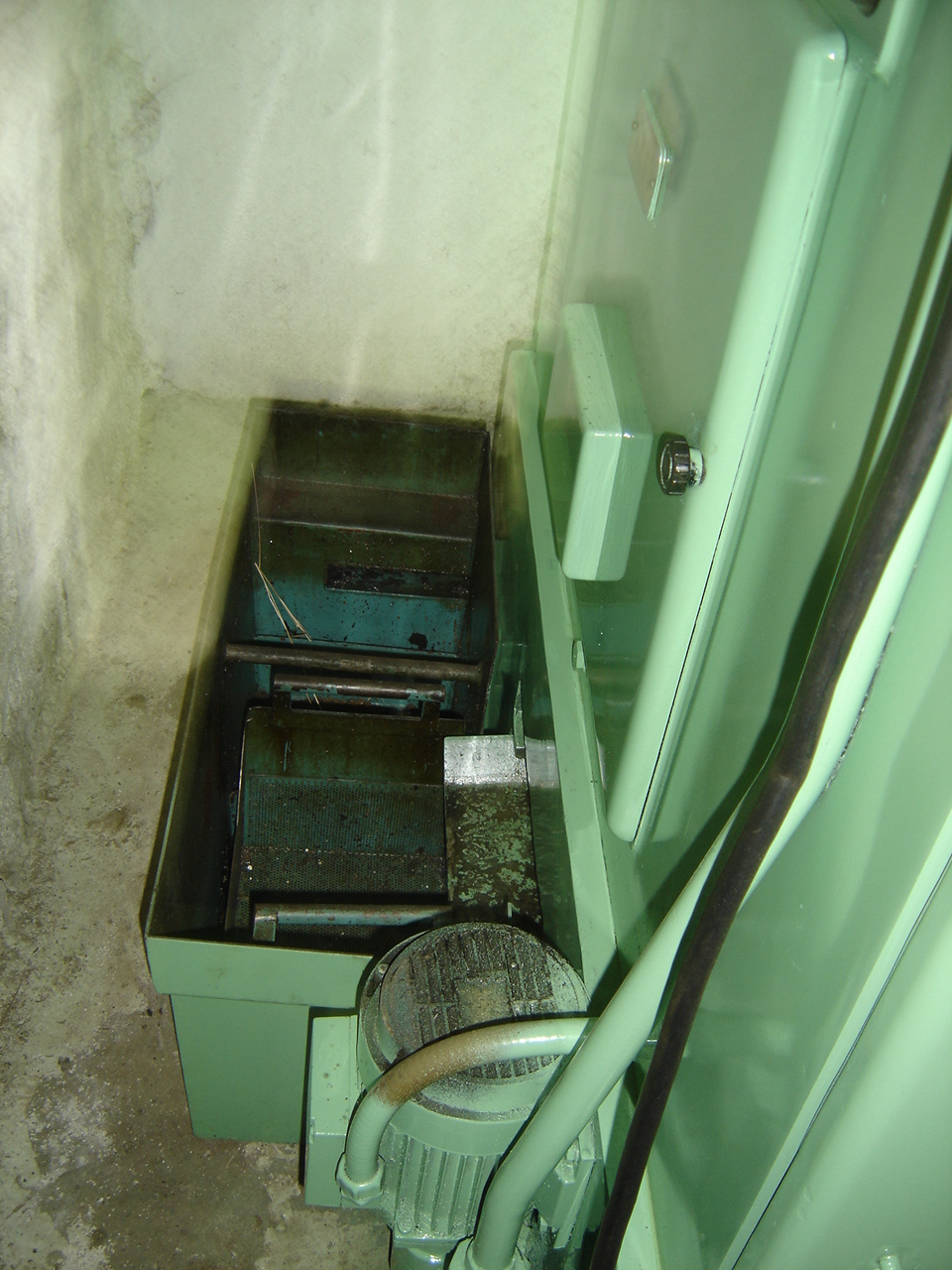

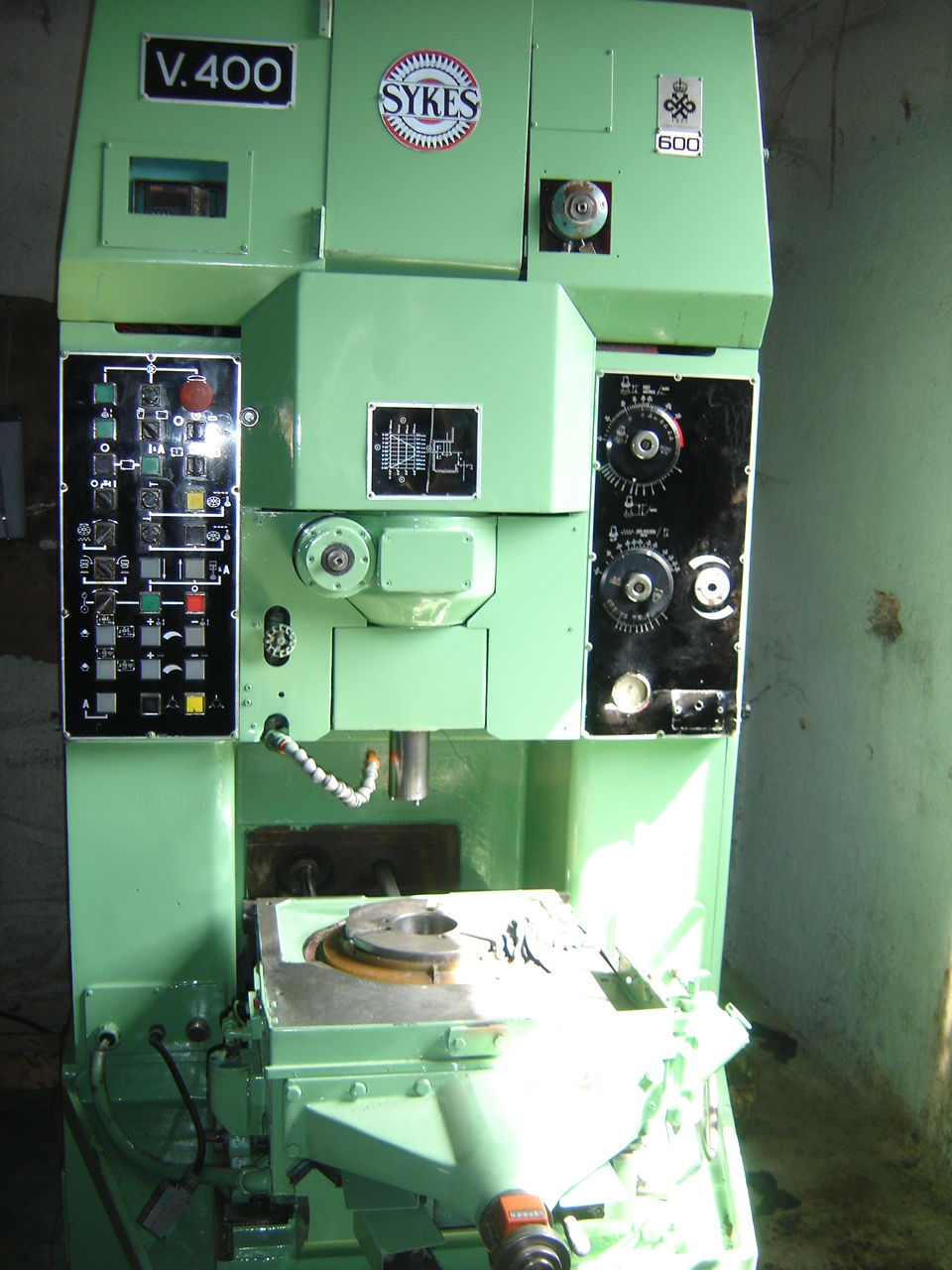

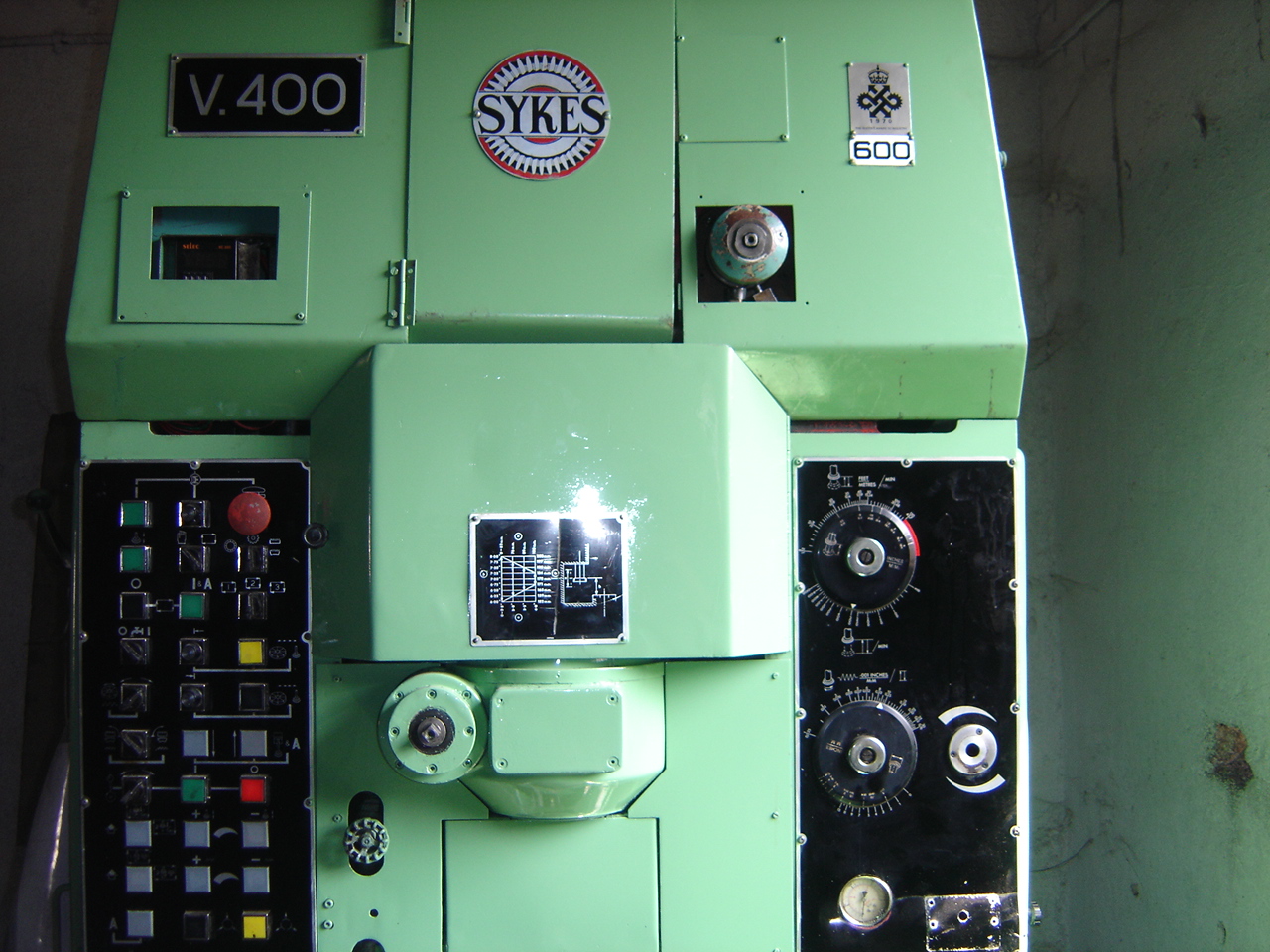

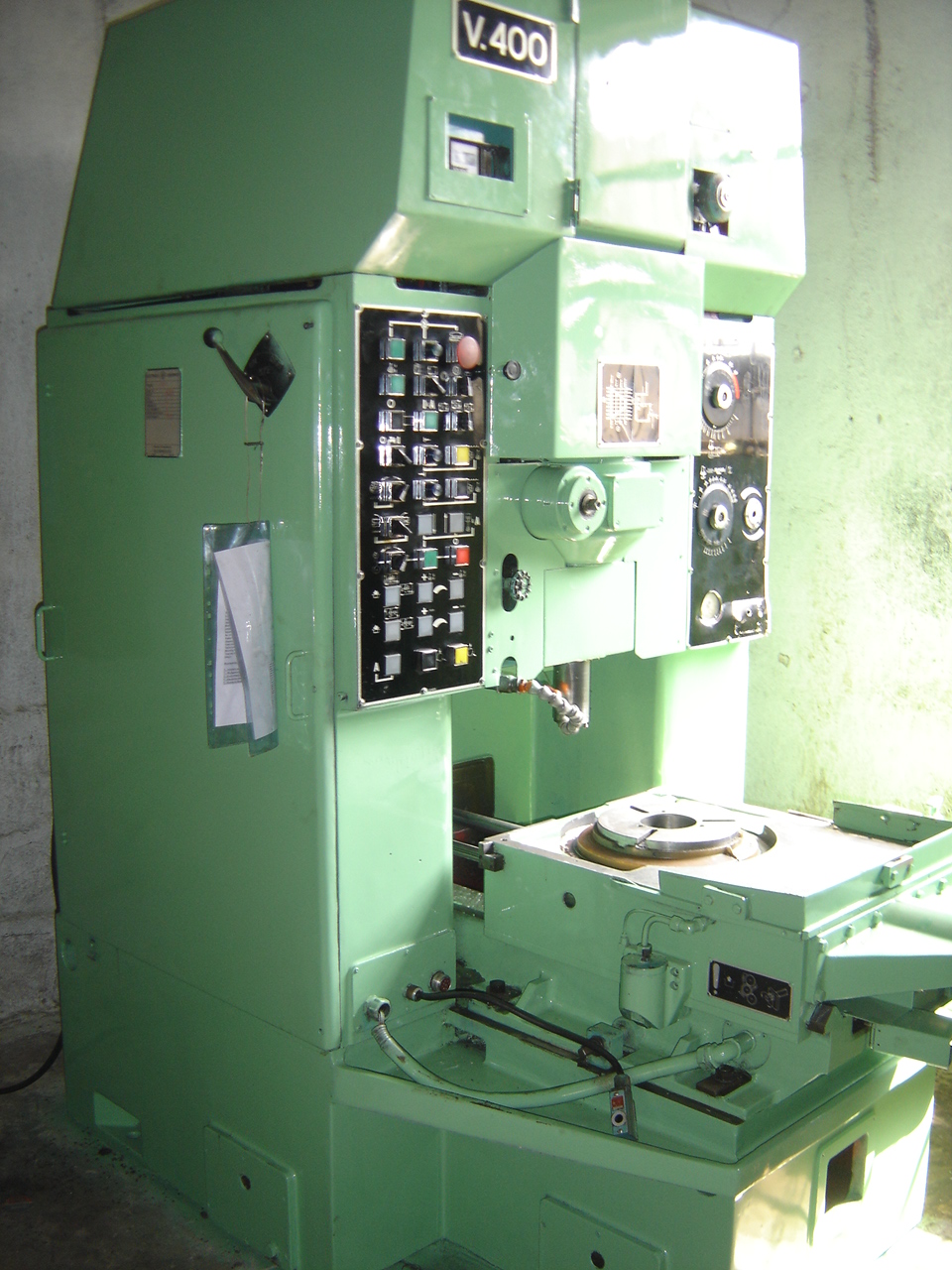

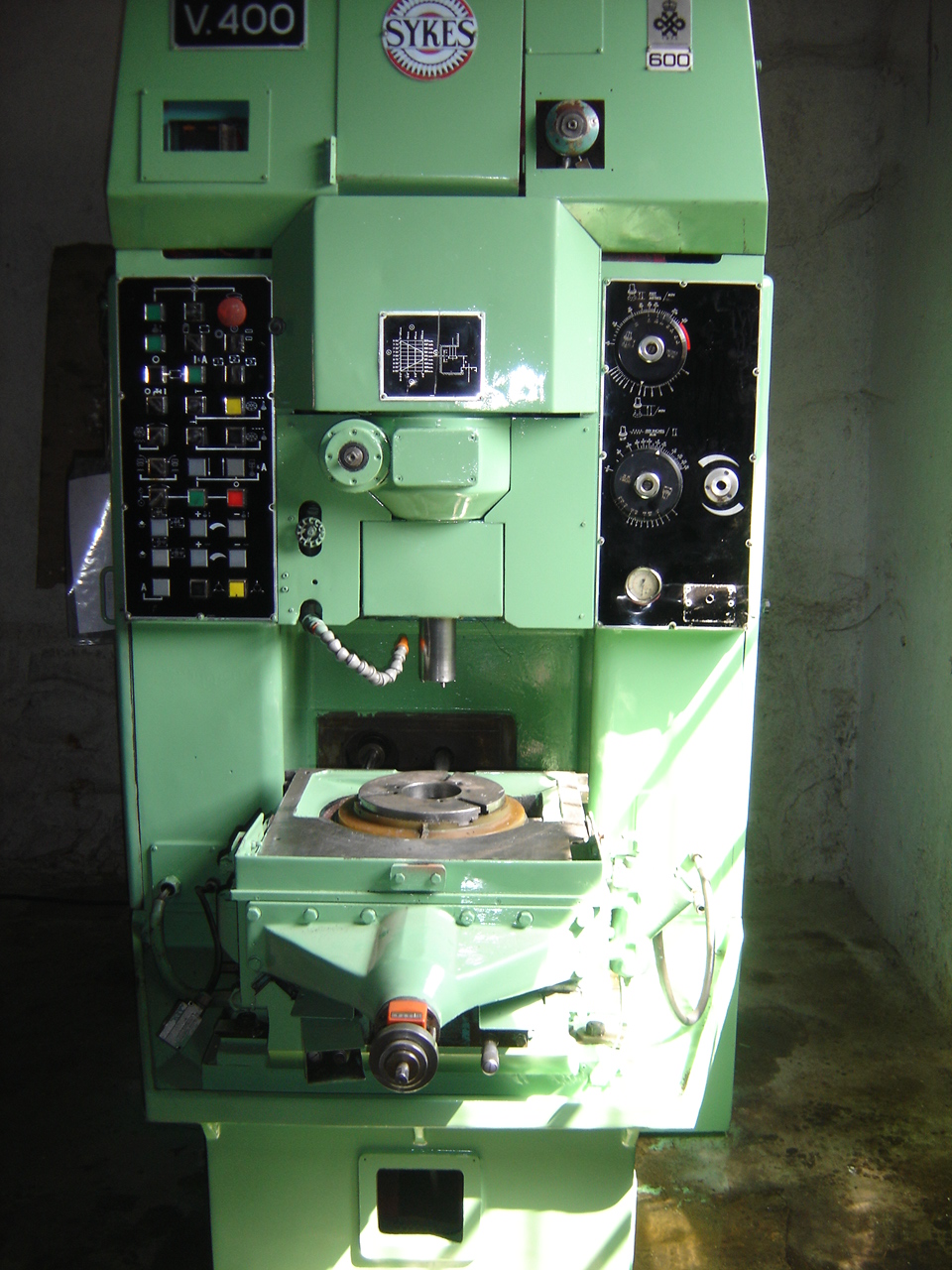

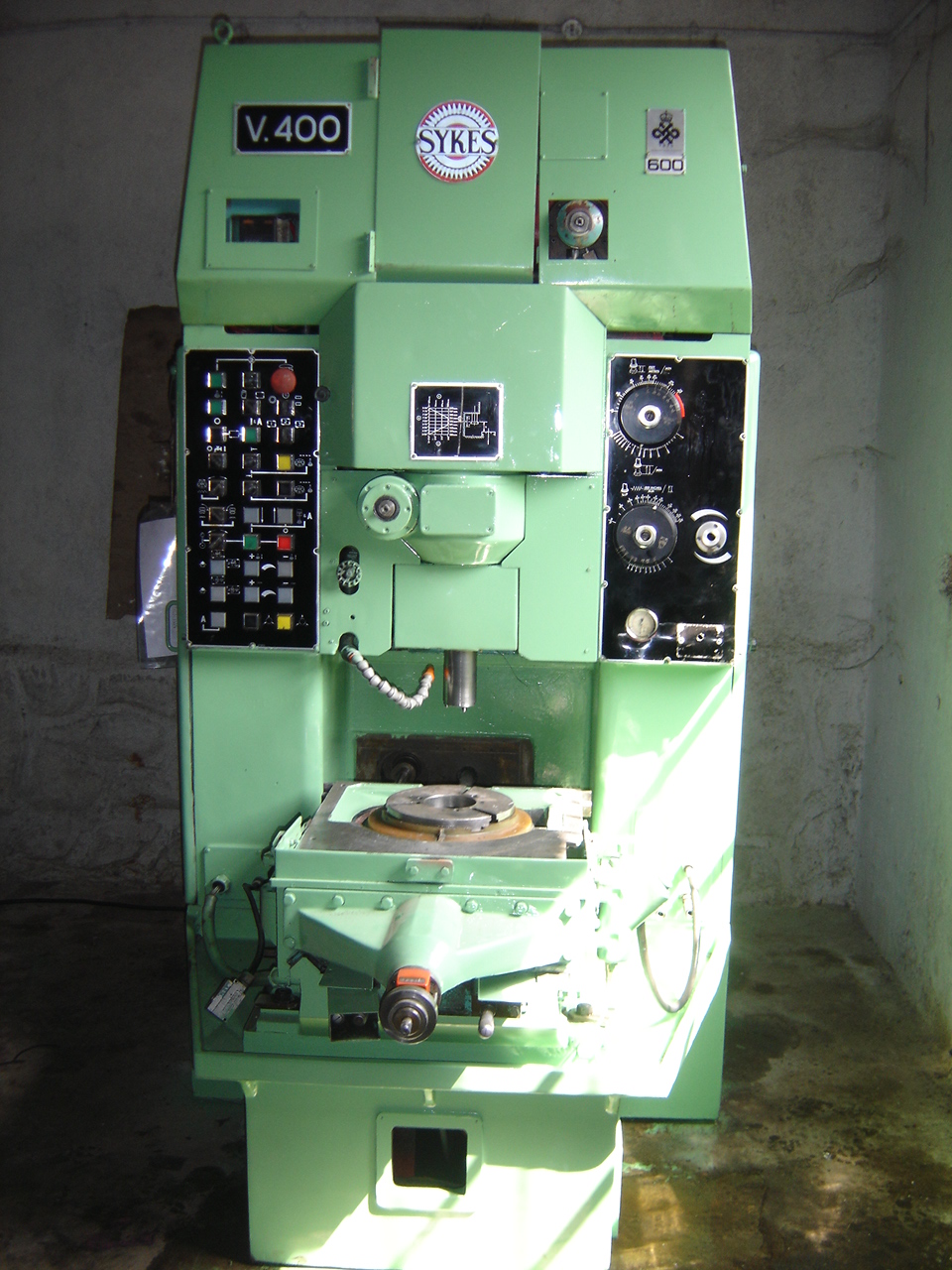

External gears, max.                                                                         400   mm

Internal gears, max.                                                                          350   mm

Gear width, max.                                                                                 100   mm

Module range                                                                                  0.5 - 6

Length of stroke                                                                             0 - 105   mm

Adjustment of stroke position, approx.                                            0.50   mm

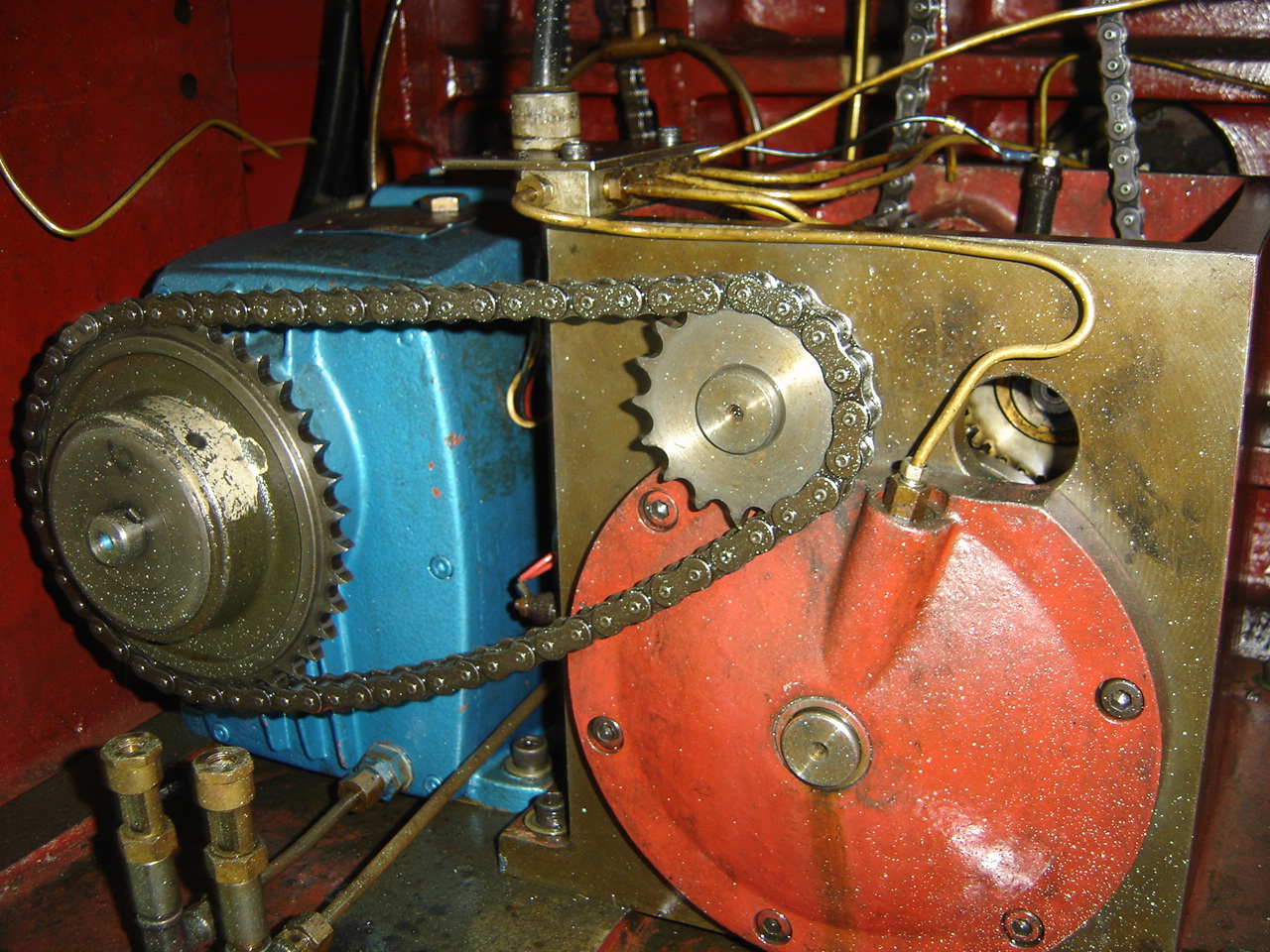

No. of strokes, approx.                                                             50 1,000   double strokes /min

Radial feed, infinitely variable                                                  2.65 100   mm/min

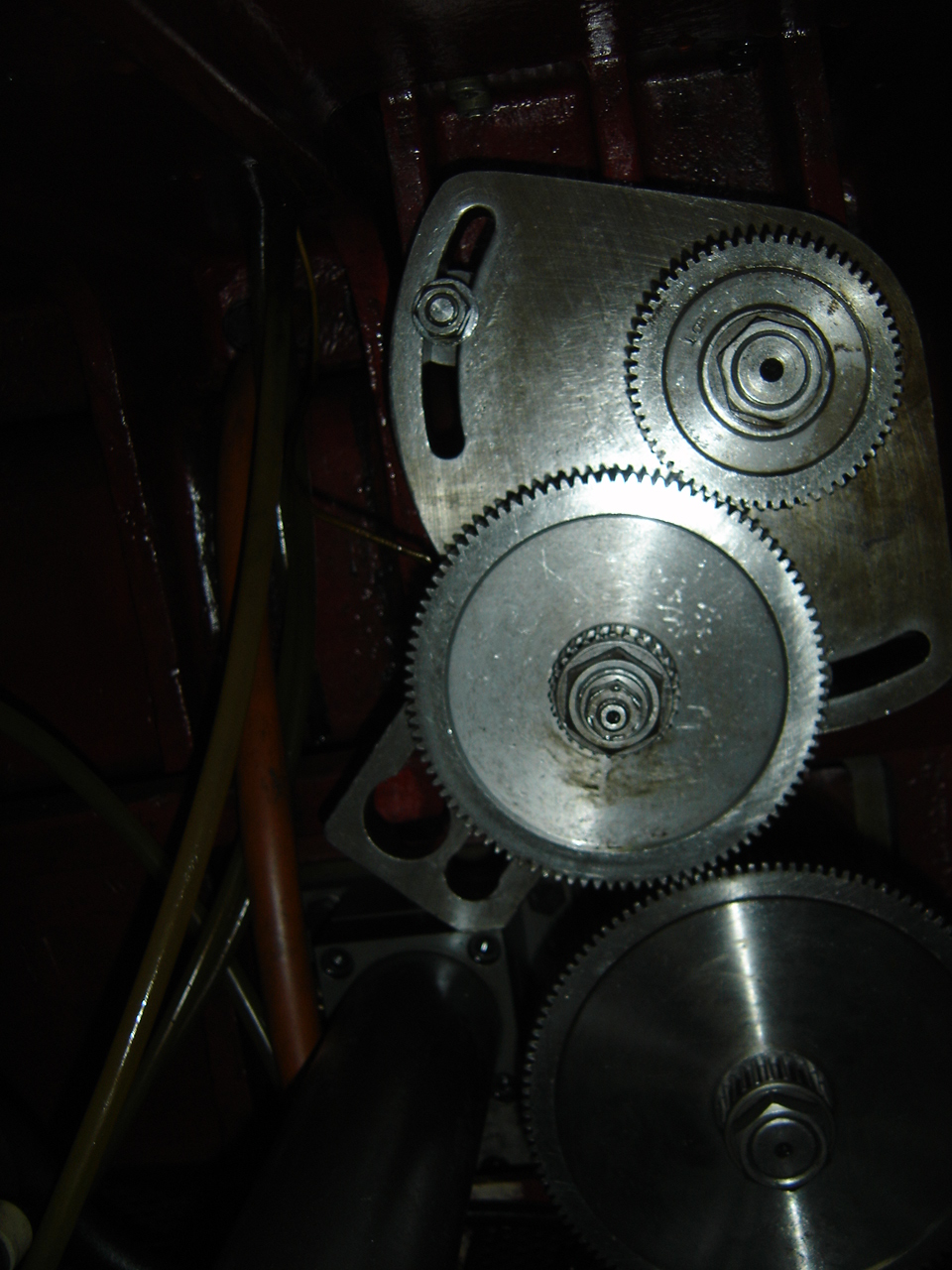

Shaping feed                                                                         0.025 0.76   mm/rev

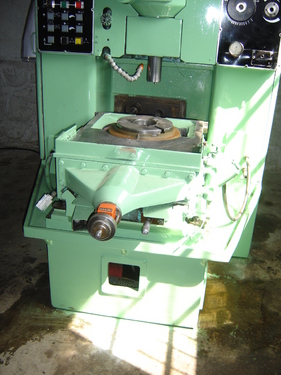

Table size                                                                                            250   mm

Table bore                                                                                           100   mm

Mounting height between table and shaper head                               220   mm

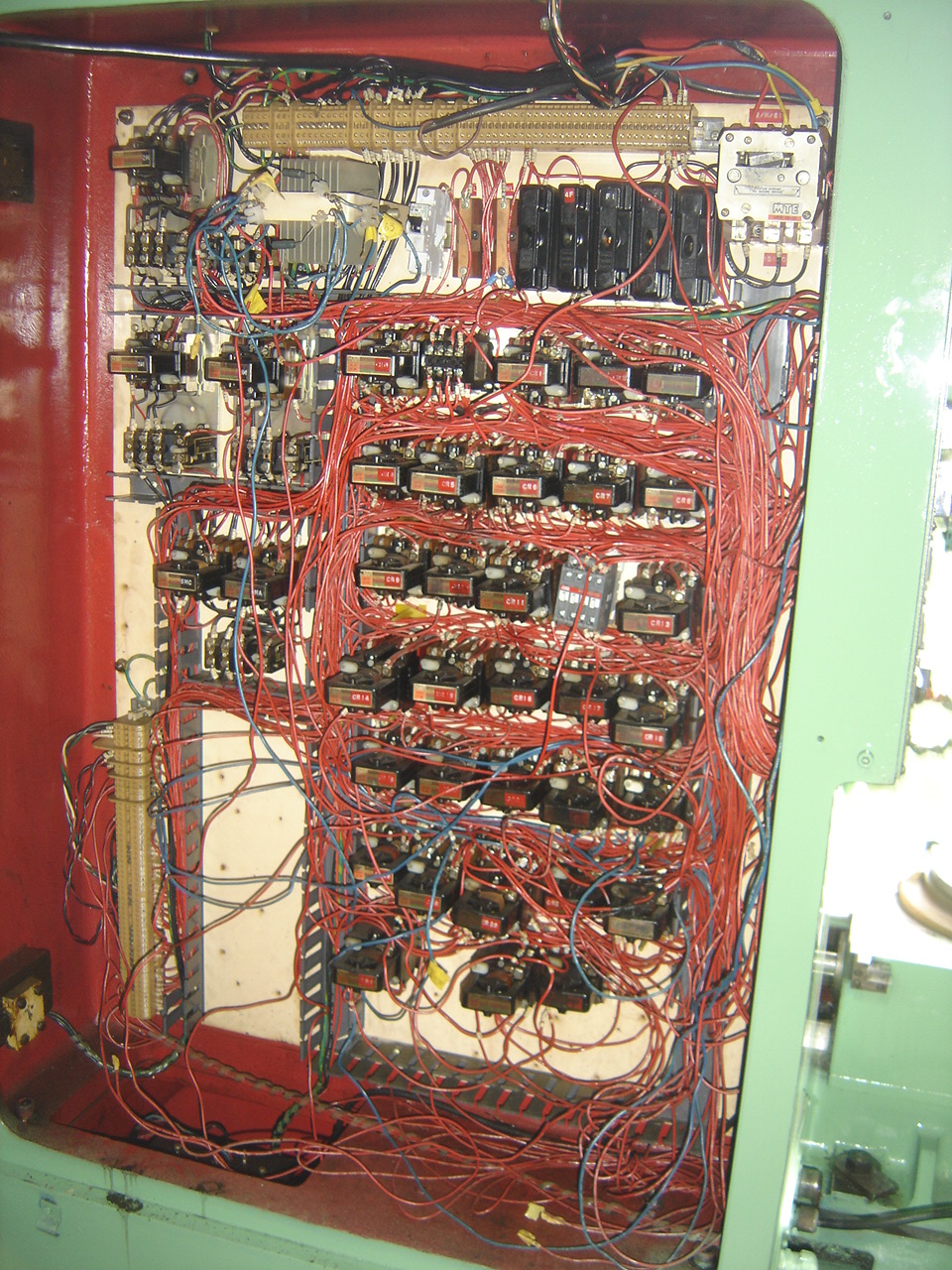

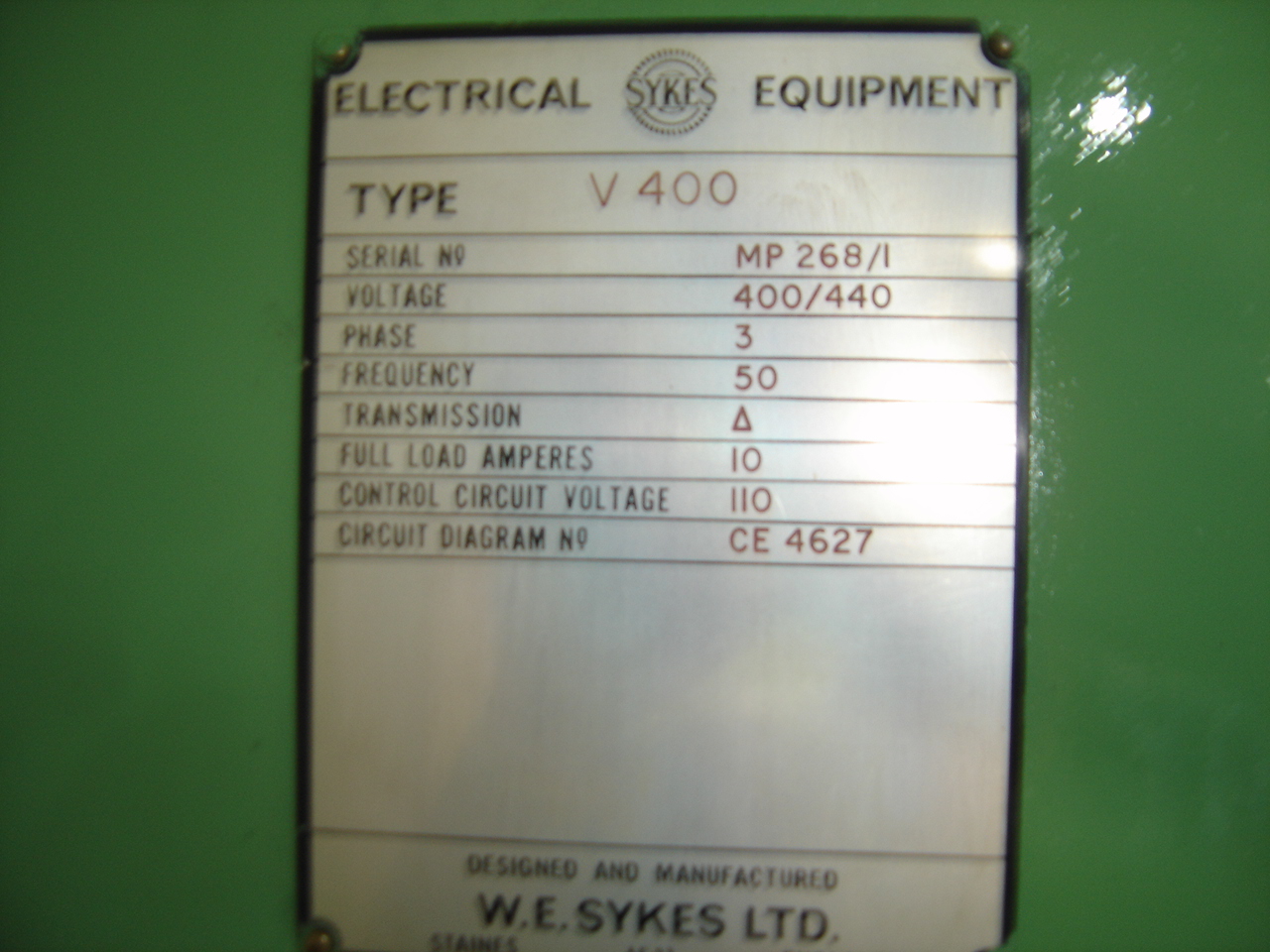

Total electrical load, approx.                                     8 kW  -  400 V  -  50   Hz

Weight                                                                                              4,500   kg

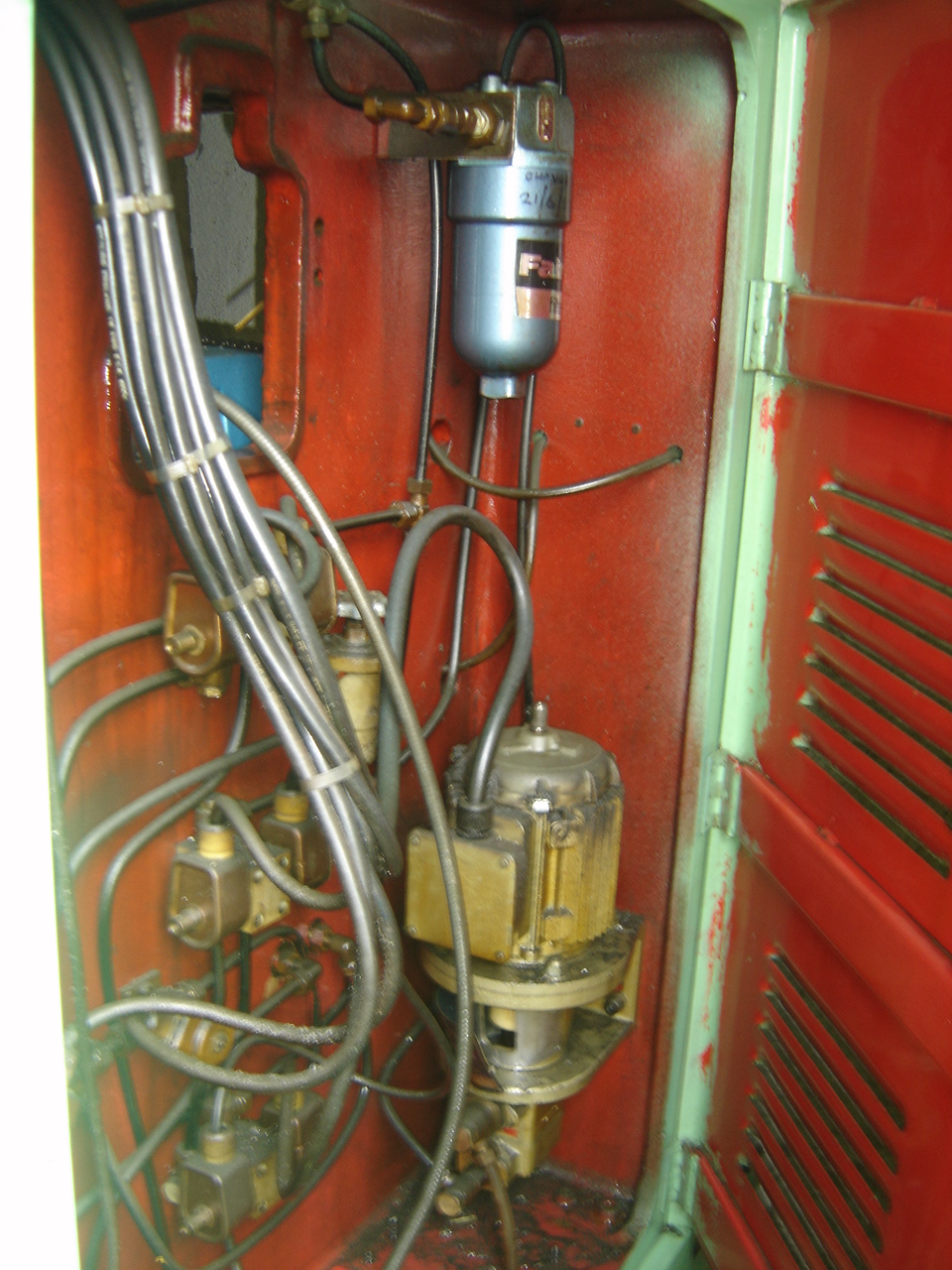

Accessories / Special Features

*       Infinitely variable feeds and strokes.  Number of strokes are displayed on the adjusting wheel.

*       Workpiece fast positioning device.

*       3-cut infeed, depth controlled using table stops.

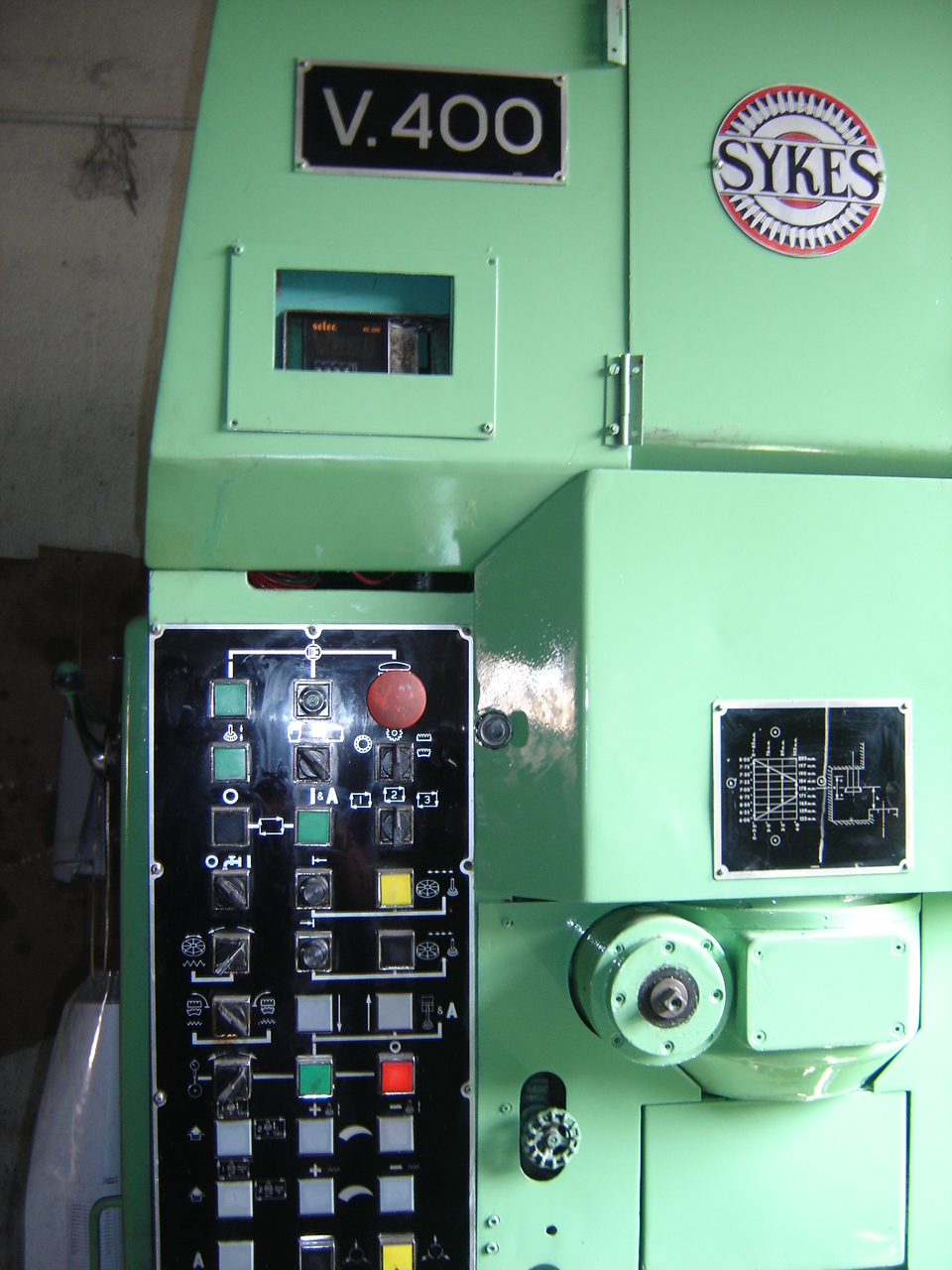

*       Electronic display for table rotation and angle display.

*       Hydraulic workpiece clamping device, mounted on the table
